Nintendo Wii

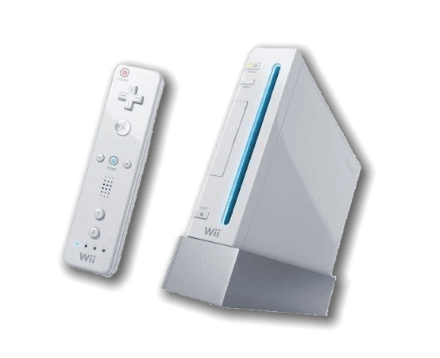

The Nintendo Wii is a console developed by Nintendo. It was released on November the 19th, 2006 and retailed for $249.99 USD.

The Wii sports a IBM PowerPC CPU at 729 MHz with 88MB of RAM, and a GPU infamously created by ATI (Wii consoles have “ATI” printed on its shell) dubbed the “Hollywood” chip. Its internal architecture is very similar to its predecessor, the GameCube, so Dolphin supports running both Wii and GameCube games. In fact, some GameCube games can be more difficult to run than Wii games.

Dolphin is pretty much the only Wii emulator.

This system scrapes metadata for the wii group and loads the wii set from the currently selected theme, if available.

  • Accepted ROM formats: .gcm, .iso, .gcz, .ciso, .wbfs, .wad, .rvz, .elf, .dol, .m3u, .json
  • Folder: /userdata/roms/wii

No Nintendo Wii emulator in Batocera needs a BIOS file to run.

Some users have reported issues with using regular traditional controllers as Wiimotes in Wii games if the game loaded has the .cc.rvz extension. Renaming this extension to .nkit.iso solved the issue for them (no actual conversion was done, just renaming).

Place your Wii ROMs in /userdata/roms/wii.

If you have a Riivolution patch, first create its JSON file as outlined on the Dolphin emulator page.

For general information about the Dolphin Emulator itself, you can also visit the Dolphin emulator page instead.

Dolphin configuration

ES setting name batocera.conf key Description ⇒ ES option key value
Settings that apply to all cores of this emulator
GRAPHICS BACKEND wii.gfxbackend Choose your graphics rendering
⇒ OpenGL OGL, Vulkan Vulkan.
UBERSHADERS wii.ubershaders Improve performance with Ubershaders. Ubershaders take advantage of your GPU to avoid in-game stutters as it generates shaders for the first time; this can happen when a certain special effect shows on the screen or a new model is rendered. Hybrid ubershaders are preferred, it will use the GPU accelerated ubershader if available to avoid stutter, otherwise it will fall back to traditional shader generation. Exclusive ubershaders will only use ubershaders, only activate this option if you have an extremely powerful GPU. Normally there is no downside to activating ubershaders, however it does increase the minimum requirements out of your GPU to run. On especially weak hardware, such as SBCs, ubershaders are disabled by default. They can still be manually turned on, but you may encounter more stutter if on an SBC. Skip draw is a hack that opts to take a different approach altogether: don't display the object in game if its shader hasn't compiled yet. Obviously, this can result in visual glitches, but may be the best option performance-wise if your hardware is extremely weak.; asynchronous is preferred, synchronous is more compatible
⇒ No Ubershaders no_ubershader, Exclusive Ubershaders exclusive_ubershader, Hybrid Ubershaders hybrid_ubershader, Skip Drawing skip_draw.
PRE-CACHE SHADERS wii.wait_for_shaders Wait for shaders to compile completely before starting the game, can reduce micro-freezes
⇒ Off (default) 0, On 1.
PERFORMANCE HACKS gamecube.perf_hacks Increase emulator performance, at the cost of accuracy/stability. Settings set to “True” with this option: Defer EFB copies to RAM DeferEFBCopies, Scaled EFB Copy EFBScaledCopy, EFB Copies EFBToTextureEnable, Skip Presenting Duplicate Frames SkipDuplicateXFBs, XFB copies XFBToTextureEnable, Force Texture Filtering ForceFiltering, Arbitrary Mipmap Detection ArbitraryMipmapDetection, Disable Copy Filter DisableCopyFilter, Force 24-Bit Color ForceTrueColor. Settings set to “False” with this option: Bounding Box BBoxEnable, Ignore Format Changes EFBEmulateFormatChanges.
⇒ Off 0, On 1.
USE PAD PROFILES wii.use_pad_profiles Search for custom configured joystick profiles
⇒ Off 0, On 1.
VIDEO RESOLUTION wii.internal_resolution Improve the fidelity of 3D models (does not affect 2D sprites)
⇒ 1x native (640×528) 1, 2x 720p (1280×1056) 2, 3x 1080p (1920×1584) 3, 4x 1440p (2560×2112) 4, 5x (3200×2640) 5, 6x 4K (3840×3168) 6, 7x (4480×3696) 7, 8x 5K (5120×4224) 8.
ANISOTROPIC FILTERING wii.anisotropic_filtering Enhance the quality of distant perspective textures
⇒ Off 0, 2x 1, 4x 2, 8x 3, 16x 4.
DUAL CORE MODE wii.dual_core Usually not much faster than single core mode
⇒ Off 0, On 1.
GPU SYNC wii.gpu_sync Speed hack for dual core mode to fix some glitches
⇒ Off 0, On 1.
ANTI-ALIASING wii.antialiasing Smooth out jagged edges on 3D object polygons
⇒ Off 0, 2x 2, 4x 4, 8x 8.
ANTI-ALIASING MODE wii.use_ssaa Toggle MSAA/SSAA. Depends on anti-aliasing being enabled.
⇒ MSAA (default) 0, SSAA 1.
HIRES TEXTURES wii.hires_textures Use HD texture packs
⇒ Off 0, On 1.
WIDESCREEN HACK wii.widescreen_hack You must use a 16/9 RATIO to work
⇒ Off 0, On 1.
ENABLE CHEATS wii.enable_cheats To use game cheats or 16/9 Aspect Ratio Fix codes
⇒ Off 0, On 1.
MEMORY MANAGEMENT UNIT wii.enable_mmu Allows many games to boot and work properly
⇒ Off 0, On 1.
FAST DISK SPEED wii.enable_fastdisc Speeds up disc speed to remove any loading
⇒ Off 0, On 1.
VSYNC wii.vsync Fix the heavy screen tearing in games (CPU heavy)
⇒ Off 0, On 1.
DUALSHOCK MOTION CONTROL wii.dsmotion Emulate the Wii pointer with your DS4's gyroscope
⇒ Off 0, On 1.
MOUSE AS IR WIIMOTE wii.mouseir Emulate the Wiimote IR control with a mouse
⇒ Off 0, On 1.
RUMBLE wii.rumble To use vibration on games with Rumble mode
⇒ Off 0, On 1.
Settings specific to wii
EMULATE WIIMOTE wii.emulatedwiimotes Use your gamepad like a vertical Wiimote in game
⇒ Off 0, On 1.
CUSTOMIZE WIIMOTE & GAMEPAD wii.controller_mode Emulate a Wiimote Sideway with L2 for Shake and Nunchuk on R-stick
⇒ Off disabled, Classic Controller cc, Wiimote Sideway side, Wiimote Sideway + Swing is, Wiimote Sideway + Tilt it, Wiimote Sideway + Nunchuk in.

RetroArch has its own page.

libretro: Dolphin

There's nothing here to configure. Use RetroArch's Quick Menu for now.

For emergency use only.

There are multiple choices for controllers and connections for playing Wii on Batocera:

USB-powered IR LED bar.

When Dolphin is launched, put the Wiimote into pair mode and it will pair. That's it. Use the IR bar as you would a normal Wii, place it either at the top or bottom of the TV screen and point at it for the on-screen Wiimote cursor.

This will work for as long as the Bluetooth dongle itself supports communicating with the Wiimote.

An ordinary controller (or keyboard) will be required to navigate menus when outside of the emulated Wii game, as the Wiimote itself cannot be used for this.

This method cannot be used simultaneously with pairing the Wiimote in EmulationStation (the main menu).

(FIXME unless you choose the “gamepad” option for the wiimote gun settings? Needs confirmation)

The Dolphinbar acts as an intermediary body between the machine and the Wiimote. It also includes IR LEDs which automatically shut off when not in use. Its Bluetooth module is the most unresponsive of all the available options, usage of native Bluetooth connection instead is usually more responsive.

An ordinary controller (or keyboard) will be required to navigate menus when outside of the emulated Wii game, as the Wiimote itself cannot be used for this.

  1. Connect your DolphinBar with USB to the machine.
  2. Press the right (FIXME MODE?) button to switch to MODE 4, the passthrough mode.
  3. Launch any Wii game from ES using a traditional controller.
    • To permanently pair the Wiimote:
    1. On the Wiimote, hold down the red sync button inside of the battery compartment. The LEDs will begin flashing.
    • To only temporarily pair the Wiimote:
    1. On the Wiimote, hold down buttons [1] + [2]. The LEDs will begin flashing.
  4. Wait until the LEDs stop flashing. Once they do, the Wiimote is connected to the emulated Wii system.

Repeat for each Wiimote desired.

For more info, refer to the Dolphinbar-specific page.

Do the same limitations about pairing in ES apply here?

What does the light gun page for Dolphinbar have to do with this? Maybe the link to it should be removed.

There's a SYNC button on the Dolphinbar itself. What does that do in this context? Is it required to be pressed or does Batocera automatically put the Dolphinbar into pairing mode once Dolphin is launched? Is the button just a passthrough for the Dolphin hotkey which automatically puts the emulated Wii into its sync mode?

This is not required to use Wiimotes regularly with Bluetooth adapters. Dolphin works fine using its emulated Bluetooth connections in most cases.

Doing this will render your Bluetooth module inoperable with anything that isn't Dolphin, including navigating the EmulationStation front-end! Be sure to have a different way of navigating the menus prepared.

A keyboard and mouse are required to initially configure this.

If instead you'd like to utilize Dolphin's Bluetooth passthrough feature, do the following:

  1. Go to the dolphin-emu-config application in Files ([F1] in system list) → Applications.
  2. Go to OptionsConfigurationWii and add your Bluetooth module to the Whitelisted USB Passthrough Devices box.

    You can test for this by plugging in your Bluetooth USB dongle and seeing which device appears, if that's what you're using.

  3. Close the configuration window, then launch a Wii game directly from Dolphin (double-click one of the Wii games on the list).
  4. Press [Alt] + [Tab] to go back to the Dolphin menu.
  5. Go to OptionsController Settings and under Passthrough a Bluetooth adapter click Sync.
  6. Press the red [SYNC] button on the underside of your Wiimote. You can either remove the battery cover to get to it or use a toothpick to press it through the hole in the cover.

    You can press [Alt] + [Tab] again to get in-game and confirm that your controller is working.

  7. Go to EmulationStop to stop the game.
  8. Exit Dolphin.

You can now use Bluetooth passthrough with Dolphin after launching the game from Batocera!

If you don't have any Wiimote controllers and want to use a regular controller, it's possible, but you will be limited to games already made for Wii Classic Controller and GC Controller.

There has to be a way to set this option from ES. If not, I should code it in.

You can turn this option on by going to advanced system settings for the Nintendo Wii > Emulate Wiimote to “On”. You can also manually edit your batocera.conf file in /userdata/system/ (or system in the SHARE NFS network drive) and turn on wii.emulatedwiimotes=1 like so:

  ## wiimotes
  ## real wiimotes must not be paired with batocera.linux system so that they can work with the wii emulator
  ## set emulatedwiimotes to 1 to emulate wiimotes with standard pads
  wii.emulatedwiimotes=1

Removing the # at the line start will 'uncomment' the line.

Now your controllers will be recognized like Wiimotes to play games, but if you try one like New Super Mario Bros you will be stuck when it will ask you to shake your pad to fly with your hat. See further down for more information.

Below is the default key mapping for Dolphin/Wii games. This is as if you are using a Wiimote in vertical orientation.

Key Wii Function Key Wii Function Key Wii Function Key Wii Function
x Buttons/2yButtons/1 a Buttons/BbButtons/A
l1/pageup Buttons/-l2/pagedownButtons/+ selectButtons/Home start
joystick1up IR/Upjoystick1leftIR/Left joystick1down IR/Downjoystick1rightIR/Right
joystick2up Tilt/Forwardjoystick2leftTilt/Left joystick2down Tilt/Downjoystick2rightTilt/Right

But playing with your gamepad in vertical orientation is really crappy…

Pre-built modifications have been baked into the configuration utility in order to support various games and remote orientation. In order to use these modifications you need to rename the ROM file to include one of the following extensions in the filename, as described below. You need to change the ROM filename, like for example New Super Mario Bros.side.iso.

  • .side. - Enables the controller to operate as a sideways wiimote. The following changes to the default configuration are enabled:
Key Wii Function Key Wii Function Key Wii Function Key Wii Function
x Buttons/ByButtons/A a Buttons/1bButtons/2
  • .cc. - Enables the controller to operate as a classic controller. The game must support the classic controller. The following changes to the default configuration are enabled:
Key Wii Function Key Wii Function Key Wii Function Key Wii Function
x Buttons/XyButtons/Y a Buttons/AbButtons/B
select Buttons/-startButtons/+ l1/pageup Triggers/Lr1/pagedownTriggers/R
l2 Buttons/ZLr2Buttons/ZR
up Classic/D-Pad/UpdownClassic/D-Pad/DownleftClassic/D-Pad/LeftrightClassic/D-Pad/Right
joystick1upClassic/Left Stick/Upjoystick1downClassic/Left Stick/Leftjoystick2upClassic/Right Stick/Upjoystick2leftClassic/Right Stick/Left
  • .XX. - Enables the controller to operate with the left joystick representing the function represented by first character and the right joystick functioning as represented by the second. The options are as follows:
Code Function Description
i infraredInfrared Options. In this option, the selected joystick will act as if you were moving the infrared around
s swingIn this option, the selected joystick will act as if you were swinging it in the direction you're pushing the joystick
t tiltIn this option, the selected joystick will act as if you were tilting it in the direction you're pushing the joystick
n nunchukIn this option, the selected joystick will act as the joystick on the nunchuk and l2 = C and r2 = Z
  • Custom - Create an additional CFG file placed in the same directory as the ROM itself to be able to custom configure the controls. The file name needs to be named the same as the ROM with .cfg added to the end.

Available Batocera Retropad controls:

  • 'a'
  • 'b'
  • 'x'
  • 'y'
  • 'pageup'
  • 'pagedown'
  • 'l2'
  • 'r2'
  • 'select'
  • 'start'
  • 'up'
  • 'down'
  • 'left'
  • 'right'
  • 'joystick1up'
  • 'joystick1down'
  • 'joystick1left'
  • 'joystick1right'
  • 'joystick2up'
  • 'joystick2down'
  • 'joystick2left'
  • 'joystick2right'

Functions are laid out in the [<Controller>/]<Input type>/<Input value> syntax. If no controller is specified, the Wiimote is assumed. Available functions:

Controller Button input type Motion input type Stick input type IMU input type
'Wiimote/<Buttons|D-Pad|IR|Tilt|Swing>' 'Buttons/A' 'IR/Up' 'Main Stick/Up' 'IMUGyroscope/Pitch Up'
'Nunchuck/<Buttons|Stick>' 'Buttons/B' 'IR/Down' 'Main Stick/Down' 'IMUGyroscope/Pitch Down'
'Classic/<Buttons|Left Stick|Right Stick>' 'Buttons/1' 'IR/Left' 'Main Stick/Left' 'IMUGyroscope/Roll Left'
'Buttons/2' 'IR/Right' 'Main Stick/Right' 'IMUGyroscope/Roll Right'
'Buttons/-' 'Tilt/Forward' 'Left Stick/Up' 'IMUGyroscope/Yaw Left'
'Buttons/+' 'Tilt/FIXME' 'Left Stick/Down' 'IMUGyroscope/Yaw Right'
'Buttons/Home' 'Tilt/Left' 'Left Stick/Left' 'IMUIR/Recenter'
'D-Pad/Up' 'Tilt/Right' 'Left Stick/Right' 'IMUAccelerometer/Left'
'D-Pad/Down' 'Swing/Up' 'Right Stick/Up' 'IMUAccelerometer/Right'
'D-Pad/Left' 'Swing/Down' 'Right Stick/Down' 'IMUAccelerometer/Forward'
'D-Pad/Right' 'Swing/Left' 'Right Stick/Left' 'IMUAccelerometer/Backward'
'Buttons/Hotkey' 'Swing/Right' 'Right Stick/Right' 'IMUAccelerometer/Up'
'Buttons/C' 'Shake/X' 'Stick/Up' 'IMUAccelerometer/Down'
'Buttons/Z' 'Shake/Y' 'Stick/Down'
'Shake/Z' 'Stick/Left'
'Stick/Right'

More syntax can be found on Dolphin wiki's controller INI page.

For example, to create a custom controller profile for New Super Mario Bros.iso in /userdata/roms/wii, the following file should be placed in /userdata/roms/wii:

New Super Mario Bros.iso.cfg
'r2':'Shake/Z'
'pageup':'Tilt/Left'
'pagedown':'Tilt/Right'
'select':'Buttons/-'
'start':'Buttons/+'

NEW: From the 5.26+ (beta 14/04/2020) you can now SHAKE in game with L2 Key, for example to play New Super Mario World while using .side. Wiimote orientation.

The following Wii games are compatible with the Classic Controller, and you can play them with this patch.

Blast Works: Build Trade Destroy
Bleach: Versus Crusade
Call of Duty: Black Ops
Call of Duty: Modern Warfare 3
Castlevania Judgment
Dokapon Kingdom
Dragon Ball Z: Budokai Tenkaichi 2
Dragon Ball Z: Budokai Tenkaichi 3
Fifa 09
Fifa 10
Fifa 15
Final Fantasy Crystal Chronicles: Echoes of Time
Fire Emblem: Radiant Dawn
Geometry Wars Galaxies
G.I. Joe: The Rise of Cobra
Grim Adventures of Billy & Mandy, The
Guilty Gear XX Accent Core
Harvest Moon: Tree of Tranquility
Kirby's Dream Collection
Mario Kart Wii
MLB Power Pros
MLB Power Pros 2008
Mortal Kombat: Armageddon
Monster Hunter Tri
Muramasa: The Demon Blade
MySims Racing
Naruto: Clash of Ninja Revolution 1
Naruto Shippuden: Clash of Ninja Revolution 3
Naruto Shippuuden Gekitou! Ninja Taisen EX
Naruto Shippuuden Gekitou! Ninja Taisen EX2
Naruto Shippuuden Gekitou! Ninja Taisen EX3
Need for Speed: Undercover
Newer Super Mario Bros Wii [HACK]
NHL 2k10
NiGHTS: Journey of Dreams
No More Heroes 2
Opoona
Pro Evolution Soccer 2009
Rampage: Total Destruction
Resident Evil Archives: Resident Evil
Resident Evil 4 Wii Edition
Rune Factory Frontier
Samurai Shodown Anthology
Sengoku Basara: Samurai Heroes
SNK Arcade Classics Vol. 1
Sonic Colors
Sonic Unleashed
SpongeBob's Truth or Square
Super Mario Kart Wii
Super Smash Bros. Brawl
Taiko No Tatsujin
Tatsunoko vs. Capcom: Cross Generation of Heroes
Teenage Mutant Ninja Turtles: Smash-Up
Tetris Party Deluxe
The Last Story
TNA Impact
Ultimate Shooting Collection
WWE SmackDown vs. Raw 2010
Victorious Boxers Revolution
Virtual Console Games
Pro Evolution Soccer 2010 ???????
Xenoblade Chronicles
Zhu Zhu Pets: Featuring the Wild Bunch

This is the default mode, when nothing else is configured. Shown on a Batocera RetroPad:

Your GPU might not be strong enough to calculate the caches in real-time while playing. This can be worked around by activating the PRE-CACHE SHADERS wii.wait_for_shaders setting, at the cost of having to wait a while on your next launch of the game (one time only).

It's still happening!

For exceptionally weak hardware, it might also be worth turning off UBERSHADERS wii.ubershaders altogether.

Dolphin has a great and informative wiki, usually detailing which settings may need to be altered to avoid issues in certain games. Search for your game on it here: https://wiki.dolphin-emu.org/index.php?title=Main_Page

For further troubleshooting, refer to the generic support pages.

  • systems/wii.txt
  • Last modified: 9 days ago
  • by atari
