Add games/BIOS files to Batocera

Batocera will only show the systems for which ROMs are installed for. As more ROMs are added for different systems, more systems will be shown. To update the game list, press [START] and go to GAME SETTINGSUPDATE GAMELISTS.

Batocera is shipped with a selection of free ROMs - games that are freely available and that can be legally distributed. You can also install additional free games from the Content Downloader. All artwork is pre-scraped for use with themes, including video previews. These can be used to test that everything is working correctly. If you'd like to add your own ROMs and BIOS files, read on.

If you've got a large set of ROMs and would like to cut down on duplicates/languages you don't need, you can use external tools such as Romulus alongside unexpectedpanda's retool utility. For arcade games specifically, it's recommended to first read the dedicated arcade guide first. Then, a tool such as Voljega's BestArcade can be used to create a curated set.

If you've already copied your ROMs over to Batocera and would like to cut down in a simpler manner, you can use tools that can be run inside of Batocera such as andrebrait's 1g1r-romset-generator instead. Just follow the instructions from its Getting Started guide, installing the script to a folder in Batocera's network share and running the commands via SSH. It's also possible to do batch gamelist editing with ARRM or RobG66's Gamelist Manager.

If you are coming from Retrobat, there is a community script that can automate the process. Most folders are identical between the projects, though.

If you would like to add your own ROMs and BIOS files, you must first gain a way to access Batocera's userdata partition (labelled as SHARE). It is separate from the boot partition, as can be seen in this infographic:

The layout of the Batocera drive.

Once access to the SHARE is gained, refer to the BIOS and ROM sections below.

Batocera accommodates for multiple ways to access its drives, which can be categorized into three categories:

Each of these methods require Batocera to be up and running first. You can choose any method listed in this bullet point list, not all of them need to be done at once.

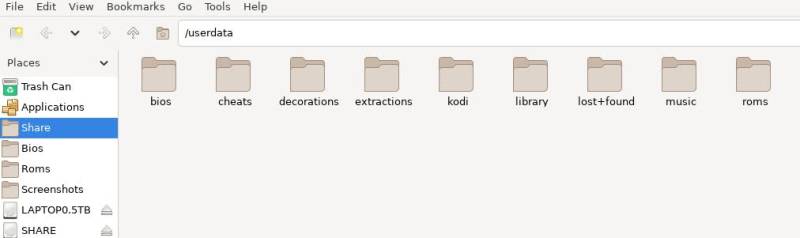

  • On PC (x86, x86_64) and RPi4 platforms, open the built-in file manager ([F1] on the keyboard while on the system list) and transfer the data using the Batocera machine itself. eg. put all your ROMs onto a USB drive, plug it into the Batocera machine while it's running and copy them over.
    Screenshot of PCmanFM. Spartan, but it works.
  • Open the controller-friendly OD-Commander in the Ports system and transfer the data using the Batocera machine itself. eg. put all your ROMs onto a USB drive, plug it into the Batocera machine while it's running and copy them over.
  • Add them from a different computer while Batocera is running, through the network share. This share is turned on by default, nothing needs to be done in Batocera. To connect to it from a different machine:
    1. Open your file explorer of choice and find its “Network” section. If using Android, CX File Explorer is a free app which supports this.
    2. Find the BATOCERA device and enter its “share” folder. If it's not appearing, directly type \\BATOCERA\share (under Windows or MacOS) or smb://BATOCERA.local/share (under Linux) in the address bar to directly navigate to it. If your router doesn't support hostnames properly (many old routers do not), type in the IP address of the Batocera machine instead of the hostname (for example, \\\share). You can find Batocera's IP address under MAIN MENUNETWORK SETTINGSIP ADDRESS.

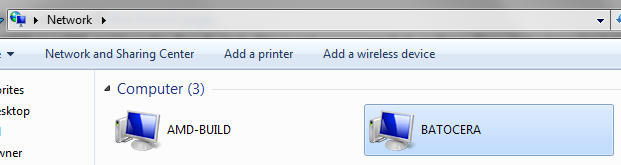

      Screenshot showing BATOCERA showing up in the Network section of File Explorer on Windows.

      If you are having trouble access the network share, be sure to check out the network issues page.

      In case BATOCERA is not appearing on the “Network” section, but you can still access it via its hostname, it's possible to create a permanent shortcut to that network location:

      • On Windows:
        1. Open “This Computer” and right click an empty space. Select Add a network location.
        2. Click Next twice.
        3. Type in the address from which you can access the Batocera share and click Next.
        4. Give the shortcut a custom name if you wish, then click Next again.
        5. Click Finish and the network location shall now appear in This Computer
      • On Linux:
        1. Open your preferred file manager.
        2. Mount the network share however way it's normally done.
        3. The share should appear in the sidebar, right click and select the equivalent of “bookmark” or “pin”.
        4. The share will now always be available in the sidebar.
      To instead map the hostname itself as a network drive
      • On Windows:

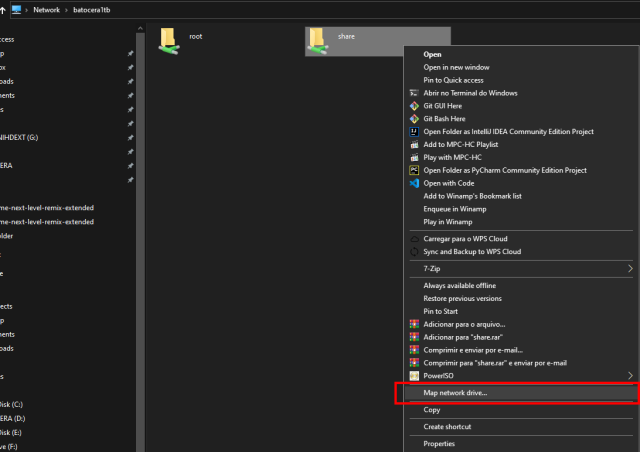

        1. Navigate to \\BATOCERA (in case the host name is not working and you'd still like to use this method, you can just enter the IP address here, but you'd also need to assign Batocera a static IP address from your router, which is outside of the scope of this guide)
        2. Right click on Batocera's “share” share

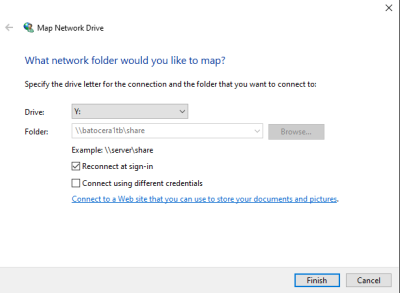

        3. Select Map Network Drive…
        4. Select a letter for the drive and confirm with Finish
        5. The drive mapped to Batocera's SHARE will now be available in This Computer
      • On Linux:
        1. FIXME (just search up “fstab” for your OS)
  • Use WinSCP to transfer from another computer to the Batocera machine via SSH/SFTP.
    Screenshot showing WinSCP at the default /userdata directory.
  • As an alternative to the built-in file manager, Midnight Commander can be used in an SSH terminal to copy files. To use it, sign in via SSH and run mc.
    Screenshot showing WinSCP at the /userdata and /userdata/roms directories.
  • If you know your way around SSH/terminal, the cp and mv commands can also be used directly.

This is by plugging the Batocera drive into another machine (or from another OS on the same machine), and copying your files from there directly onto the SHARE partition.

If using any of these methods, be sure to boot Batocera at least once to allow it to auto-expand the userdata partition to fill the rest of the drive. Otherwise, it will only be 512 MB large!

  • Directly copy the ROM/BIOS files onto the userdata partition on a computer that can natively write to ext4 filesystems (any OS that supports the ext4 filesystem should work).
    • When the Batocera drive is connected, two partitions will appear. One labelled BATOCERA, which is the boot partition, and another labelled SHARE, which is the userdata partition. Copy your games/BIOS files appropriately into the SHARE partition. Windows is unable to read Linux formatted filesystems by default, either reformat the userdata to a simpler filesystem, add additional unofficial drivers to Windows (described below) or use a more robust OS.
      • In Windows:

      Be warned that there have been user reports of Windows/iOS failing to copy over the data successfully when interacting with Linux-formatted partitions, resulting in weird issues such as files disappearing. For most users, this is not an issue. If you have any doubts, use Batocera itself to copy the data over while it's running.

      For a simple solution, Disk Genius can be used to read and write to ext4 partitions. The free trial only allows “small” files to be copied over.

      Alternatively, an ext4 Windows system driver such as Ext2Fsd can be downloaded and installed. Be weary that it's an unstable kernel driver which no longer receives updates. Alternatively, use one of the modules from this French page.

      Using WSL2 to mount ext4 partitions on Windows 11
      As preamble, if you're going to this extent to fix broken features in Windows, you may as well just install Ubuntu in a VM and enable guest additions to allow for drag and drop. It would be much simpler.

      If you are using Windows 11 (or Windows 10 Insider Build 20211) or above, its WSL 2 feature allows for the mounting of ext4 filesystems (this requires a Linux distro to be installed in the WSL2, and a bug prevents devices detected as flash drives from being read):

      1. Open a PowerShell window with administrator privileges
      2. If WSL is currently disabled:
        1. Type in Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Windows-Subsystem-Linux and press [Enter]
        2. Restart the computer when prompted
        3. Open Powershell with administrative privileges again
        4. Install a Linux distro in WSL2. This can be accomplished by typing in wsl --install --distribution Ubuntu and pressing [Enter]
      3. List all currently available disks to mount by typing in wmic diskdrive list brief and pressing [Enter]
      4. Then type wsl --mount <DiskPath> (where <DiskPath> is replaced with the intended disk, for example wsl --mount \\.\PHYSICALDRIVE1) and press [Enter] again
      5. The partition will now appear in the sidebar of file explorer under the “Linux” group (or alternatively manually navigate to \wsl$)
      6. To unmount the disk, type wsl --unmount <Diskpath>
      • In MacOS:

      If you are using MacOS, it is recommended to use the network transfer method (followed by the virtual machine method mentioned in the next bullet point). If you are already familiar with the inner workings of MacOS, have built software from its source before, have homebrewed your system and are okay with introducing instability to your system, a native solution to read ext4 partitions is available. macFUSE with fuse-ext2 can be used to read and write to ext4 partitions. A very brief guide (this is untested, refer to the Github page to be aware of the proper method, to quote the driver one last time “This is experimental code, opening rw a real file system could be dangerous for your data. Please add ”-o ro“ if you want to open the file system image in read-only mode, or ”-o rw+“ if you accept the risk to test this module”):

      1. Install Homebrew for your system. This will not be covered as it is its own ordeal, not intended for regular users anyway.
      2. Install macfuse: brew install --cask macfuse
      3. Install fuse-ext2: brew method or manual compilation.
      4. Discover which disk it is that contains the Batocera userdata: diskutil list
      5. Mount the disk (where /tmp/test-fs.ext4 is the path to the disk desired):
        /opt/gnu/sbin/mkfs.ext4 /tmp/test-fs.ext4
        mkdir -p ~/mnt/fuse-ext2.test-fs.ext4
        fuse-ext2 /tmp/fuse-ext2.test-fs.ext4 ~/mnt/fuse-ext2.test-fs.ext4 -o rw+,allow_other,uid=501,gid=20
  • Use a virtual machine of an OS which can natively read ext4 filesystems, along with a plugin that allows transfer between the virtual machine and the host system. Oracle Virtualbox, VMWare and if you have Windows Pro or superior editions use its built-in virtual machine tool, Hyper-V.
  • Format your userdata partition to an older filesystem compatible with more OS's, such as NTFS or exFAT, and copy the files directly to it. This is not recommended, as those filesystems have limitations.
  • In Batocera 5.26 and higher, format your userdata partition to BTRFS and transfer directly to it.

    On Windows, you can install the btrfs_for_windows driver from the tools/ folder on the Batocera drive. Check its readme on how to install it. If using secure boot, an additional workaround is needed.

    “For the very latest versions of Windows 10, Microsoft introduced more onerous requirements for signing, which seemingly aren't available for open-source drivers. To work around this, go to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\CI\Policy in Regedit, create a new DWORD value called UpgradedSystem and set to 1, and reboot. Or you could always just turn off Secure Boot in your BIOS settings.”

Alternatively, you can skip having to access Batocera's internal drive all together by instead commanding Batocera to use an external storage.

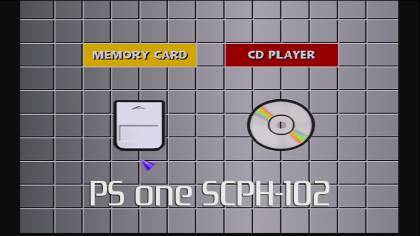

BIOS files are files required for some emulators to operate correctly. For example, some of the PlayStation and the NeoGeo games require a BIOS file to work.


All of these go into the bios/ folder in the SHARE partition.

BIOS files are copyrighted and are therefore not included with Batocera. We can not legally distribute them, so you will need to supply your own.

What about arcade games? For arcade emulators, it's a little more complicated: many arcade boards were designed for one specific game, or just a few games. And most cases, you don't need BIOS files, but you might still need some specific additional files as described on this page. For other arcade systems, like Atomiswave or Naomi, they need a proper BIOS file, as listed below.

The md5sum command to get the checksum of the BIOS files, but the easiest way is to check MISSING BIOS from the SYSTEM SETTINGS menu, it will show the required path and md5sum of every BIOS file needed for each system. This is always up to date with the current version of Batocera installed.

A text document of the BIOS files required by the emulated systems can be found at bios/readme.txt. Use the terminal command more /usr/share/batocera/datainit/bios/readme.txt to quickly scroll through it ([Space] to scroll, [Q] to quit).

The BIOS checker tool itself can be run itself with batocera-systems (takes a while to process, give it a minute or two). Not all “missing” BIOS files are required, most emulators will still run without them and you don't need the BIOS files for any system you aren't intending on playing.

You can find the current list of required and soon-to-be-implemented BIOS files directly on the Github repository.

Here is the list compatible md5 and filenames per system, last updated for Batocera v36:

Click to expand the list.
    # ---------- Atari ---------- #
    "atari800": { "name": "Atari 800", "biosFiles": [ { "md5": "eb1f32f5d9f382db1bbfb8d7f9cb343a", "file": "bios/ATARIOSA.ROM"},
                                                      { "md5": "a3e8d617c95d08031fe1b20d541434b2", "file": "bios/ATARIOSB.ROM"},
                                                      { "md5": "06daac977823773a3eea3422fd26a703", "file": "bios/ATARIXL.ROM" },
                                                      # The BASIC cart came with all Atari computers. On the XL and XE, it was built-in, so it's required by those models.
                                                      { "md5": "0bac0c6a50104045d902df4503a4c30b", "file": "bios/ATARIBAS.ROM"} ] },

    "atari5200": { "name": "Atari 5200", "biosFiles": [ { "md5": "281f20ea4320404ec820fb7ec0693b38", "file": "bios/5200.rom"    } ] },

    "atarist": { "name": "Atari ST", "biosFiles": [ { "md5": "c1c57ce48e8ee4135885cee9e63a68a2", "file": "bios/tos.img"}, # TOS 1.02 US
                            # Atari ST / STf / STfm
                            { "md5": "25789a649faff0a1176dc7d9b98105c0", "file": "bios/tos100fr.img"},
                            { "md5": "c87a52c277f7952b41c639fc7bf0a43b", "file": "bios/tos100uk.img"},
                            { "md5": "d0f682ee6237497004339fb02172638b", "file": "bios/tos100us.img"},

                            { "md5": "a622cc35d8d78703905592dfaa4d2ccb", "file": "bios/tos102de.img"},
                            { "md5": "d6521785627d20c51edc566808a6bf28", "file": "bios/tos102fr.img"},
                            { "md5": "b2a8570de2e850c5acf81cb80512d9f6", "file": "bios/tos102uk.img"},
                            #{ "md5": "c1c57ce48e8ee4135885cee9e63a68a2", "file": "bios/tos102us.img"},

                            { "md5": "41b7dae4e24735f330b63ad923a0bfbc", "file": "bios/tos104de.img"},
                            { "md5": "143343f7b8e0b1162af206fe8f46b002", "file": "bios/tos104es.img"},
                            { "md5": "0087e2707c57efa2106a0aa7576655c0", "file": "bios/tos104fr.img"},
                            #{ "md5": "52248cc70ae48b3050e197e270917130", "file": "bios/tos104nl.img"},
                            #{ "md5": "7c040857bdcfcd7d748ca82205463efa", "file": "bios/tos104se.img"},
                            { "md5": "036c5ae4f885cbf62c9bed651c6c58a8", "file": "bios/tos104uk.img"},
                            { "md5": "736adb2dc835df4d323191fdc8926cc9", "file": "bios/tos104us.img"},

                            # Atari STe
                            { "md5": "992bac38e01633a529121a2a65f0779e", "file": "bios/tos106de.img"},
                            { "md5": "30f69d70fe7c210300ed83f991b12de9", "file": "bios/tos106es.img"},
                            { "md5": "bc7b224d0dc3f0cc14c8897db89c5787", "file": "bios/tos106fr.img"},
                            { "md5": "6033f2b9364edfed321c6931a8181fd2", "file": "bios/tos106uk.img"},
                            { "md5": "a0982e760f9807d82667ff5a69e78f6b", "file": "bios/tos106us.img"},

                            { "md5": "94a75c1c65408d9f974b0463e15a3b11", "file": "bios/tos162de.img"},
                            { "md5": "ed5fbaabe0219092df74c6c14cea3f8e", "file": "bios/tos162fr.img"},
                            #{ "md5": "6f9471098a521214fad1e2c6f2dd3d08", "file": "bios/tos162se.img"},
                            { "md5": "1cbc4f55295e469fc8cd72b7efdea1da", "file": "bios/tos162uk.img"},
                            { "md5": "febb00ba8784798293a7ae709a1dafcb", "file": "bios/tos162us.img"},

                            # Atari Mega STe
                            { "md5": "7aeabdc25f8134590e25643a405210ca", "file": "bios/tos205de.img"},
                            { "md5": "7449b131681f1dfe62ebed1392847057", "file": "bios/tos205es.img"},
                            { "md5": "61b620ad951815a25cb37895c81a947c", "file": "bios/tos205fr.img"},
                            { "md5": "7e87d8fe7e24e0b4c55ad1b7955beae3", "file": "bios/tos205it.img"},
                            #{ "md5": "1c92855316a33faee602b8007f22d2cb", "file": "bios/tos205se.img"},
                            { "md5": "7cdd45b6aac66a21bfb357d9334e46db", "file": "bios/tos205us.img"},

                            { "md5": "0604dbb85928f0598d04144a8b554bbe", "file": "bios/tos206de.img"},
                            { "md5": "b2873004a408b8db36321f98daafa251", "file": "bios/tos206fr.img"},
                            { "md5": "4a0d4f282c3f2a0196681adf88862dd4", "file": "bios/tos206.img"},
                            #{ "md5": "332fe3803a7e20cd625b27a69f07ae69", "file": "bios/tos206ru.img"},
                            #{ "md5": "a7dc40dc5c1086bce1a8f3d44fd29051", "file": "bios/tos206se.img"},
                            { "md5": "e690bec90d902024beed549d22150755", "file": "bios/tos206uk.img"},
                            { "md5": "c9093f27159e7d13ac0d1501a95e53d4", "file": "bios/tos206us.img"},

                            # Atari TT
                            { "md5": "066f39a7ea5789d5afd59dd7b3104fa6", "file": "bios/tos306de.img"},
                            { "md5": "dd1010ec566efbd71047d6c4919feba5", "file": "bios/tos306uk.img"},

                            # Atari Falcon
                            { "md5": "ed2647936ce4bd283c4d7dfd7ae09d1c", "file": "bios/tos400.img"},
                            { "md5": "9e880168d0a004f7f5e852be758f39e4", "file": "bios/tos402.img"},
                            { "md5": "e5ea0f216fb446f1c4a4f476bc5f03d4", "file": "bios/tos404.img"} ] },

    "lynx": { "name": "Lynx", "biosFiles": [ { "md5": "fcd403db69f54290b51035d82f835e7b", "file": "bios/lynxboot.img"} ] },

    # ---------- Magnavox and Philips ---------- #
    "o2em": { "name": "Odyssey 2", "biosFiles": [ { "md5": "562d5ebf9e030a40d6fabfc2f33139fd", "file": "bios/o2rom.bin" },
                                                  { "md5": "f1071cdb0b6b10dde94d3bc8a6146387", "file": "bios/c52.bin"   } ] },

    "videopacplus": { "name": "Videopac+ G7400", "biosFiles": [ { "md5": "c500ff71236068e0dc0d0603d265ae76", "file": "bios/g7400.bin" },
                                                                { "md5": "279008e4a0db2dc5f1c048853b033828", "file": "bios/jopac.bin" } ] },

    # ---------- Mattel ---------- #
    "intellivision": { "name": "Mattel Intellivision", "biosFiles": [   { "md5": "62e761035cb657903761800f4437b8af", "file": "bios/exec.bin"   },
                                                                        { "md5": "0cd5946c6473e42e8e4c2137785e427f", "file": "bios/grom.bin"   } ] },

    # ---------- NEC ---------- #
    "pcengine":   { "name": "PC Engine", "biosFiles":  [ { "md5": "38179df8f4ac870017db21ebcbf53114", "file": "bios/syscard3.pce" } ] },

    "pcfx":       { "name": "PC-FX", "biosFiles":      [ { "md5": "08e36edbea28a017f79f8d4f7ff9b6d7", "file": "bios/pcfx.rom"     } ] },

    "supergrafx": { "name": "Supergrafx", "biosFiles": [ { "md5": "38179df8f4ac870017db21ebcbf53114", "file": "bios/syscard3.pce" } ] },

    # ---------- SNK ----------#
    "neogeo":   { "name": "NeoGeo", "biosFiles":    [  { "md5": "dffb72f116d36d025068b23970a4f6df", "file": "bios/" } ] },
    "neogeocd":  { "name": "NeoGeo CD", "biosFiles": [ { "md5": "8834880c33164ccbe6476b559f3e37de", "file": "bios/neocd/neocd_f.rom" },
                                                       { "md5": "043d76d5f0ef836500700c34faef774d", "file": "bios/neocd/neocd_sf.rom" },
                                                       { "md5": "de3cf45d227ad44645b22aa83b49f450", "file": "bios/neocd/neocd_t.rom" },
                                                       { "md5": "f6325a33c6d63ea4b9162a3fa8c32727", "file": "bios/neocd/neocd_st.rom" },
                                                       { "md5": "11526d58d4c524daef7d5d677dc6b004", "file": "bios/neocd/neocd_z.rom" },
                                                       { "md5": "971ee8a36fb72da57aed01758f0a37f5", "file": "bios/neocd/neocd_sz.rom" },
                                                       { "md5": "5c2366f25ff92d71788468ca492ebeca", "file": "bios/neocd/front-sp1.bin" },
                                                       { "md5": "122aee210324c72e8a11116e6ef9c0d0", "file": "bios/neocd/top-sp1.bin" },
                                                       { "md5": "f39572af7584cb5b3f70ae8cc848aba2", "file": "bios/neocd/neocd.bin"},
                                                       { "md5": "08ca8b2dba6662e8024f9e789711c6fc", "file": "bios/neocd/uni-bioscd.rom"} ] },

    # ---------- Sharp ---------- #
    "x68000": { "name": "Sharp x68000", "biosFiles": [  { "md5": "7fd4caabac1d9169e289f0f7bbf71d8e", "file": "bios/keropi/iplrom.dat" },
                                                        { "md5": "cb0a5cfcf7247a7eab74bb2716260269", "file": "bios/keropi/cgrom.dat"  } ] },

    # ---------- Panasonic, Sanyo and Goldstar ---------- #
    "3do":  { "name": "3DO", "biosFiles": [ { "md5": "f47264dd47fe30f73ab3c010015c155b", "file": "bios/panafz1.bin" },
                                            { "md5": "51f2f43ae2f3508a14d9f56597e2d3ce", "file": "bios/panafz10.bin"},
                                            { "md5": "8639fd5e549bd6238cfee79e3e749114", "file": "bios/goldstar.bin"} ] },

    # ---------- Sega ---------- #
    "dreamcast":    { "name": "Dreamcast", "biosFiles":   [ { "md5": "e10c53c2f8b90bab96ead2d368858623", "file": "bios/dc_boot.bin"  },
                                                            { "md5": "0a93f7940c455905bea6e392dfde92a4", "file": "bios/dc_flash.bin" } ] },

    "naomi":        { "name": "Naomi", "biosFiles":       [ { "md5": "eb4099aeb42ef089cfe94f8fe95e51f6", "file": "bios/dc/"   } ] },

    "atomiswave":   { "name": "Atomiswave", "biosFiles":  [ { "md5": "0ec5ae5b5a5c4959fa8b43fcf8687f7c", "file": "bios/dc/"  } ] },

    "segacd":       { "name": "Sega CD", "biosFiles":     [ { "md5": "e66fa1dc5820d254611fdcdba0662372", "file": "bios/bios_CD_E.bin"   },
                                                            { "md5": "854b9150240a198070150e4566ae1290", "file": "bios/bios_CD_U.bin"   },
                                                            { "md5": "278a9397d192149e84e820ac621a8edd", "file": "bios/bios_CD_J.bin"   } ] },

    "msu-md":       { "name": "MSU-MD", "biosFiles":      [ { "md5": "e66fa1dc5820d254611fdcdba0662372", "file": "bios/bios_CD_E.bin"   },
                                                            { "md5": "854b9150240a198070150e4566ae1290", "file": "bios/bios_CD_U.bin"   },
                                                            { "md5": "278a9397d192149e84e820ac621a8edd", "file": "bios/bios_CD_J.bin"   } ] },

    "saturn":       { "name": "Sega Saturn", "biosFiles": [ { "md5": "85ec9ca47d8f6807718151cbcca8b964", "file": "bios/sega_101.bin"     },
                                                            { "md5": "3240872c70984b6cbfda1586cab68dbe", "file": "bios/mpr-17933.bin"    },
                                                            { "md5": "255113ba943c92a54facd25a10fd780c", "file": "bios/mpr-18811-mx.ic1" },
                                                            { "md5": "1cd19988d1d72a3e7caa0b73234c96b4", "file": "bios/mpr-19367-mx.ic1" },
                                                            { "md5": "af5828fdff51384f99b3c4926be27762", "file": "bios/saturn_bios.bin" } ] },

    # ---------- Sony Computer Entertainment ---------- #
    "psx": { "name": "PSX", "biosFiles": [  { "md5": "c53ca5908936d412331790f4426c6c33", "file": "bios/psxonpsp660.bin" },
                                            { "md5": "6e3735ff4c7dc899ee98981385f6f3d0", "file": "bios/scph101.bin"     },
                                            { "md5": "dc2b9bf8da62ec93e868cfd29f0d067d", "file": "bios/scph1001.bin"    },
                                            { "md5": "8dd7d5296a650fac7319bce665a6a53c", "file": "bios/scph5500.bin"    },
                                            { "md5": "490f666e1afb15b7362b406ed1cea246", "file": "bios/scph5501.bin"    },
                                            { "md5": "32736f17079d0b2b7024407c39bd3050", "file": "bios/scph5502.bin"    },
                                            { "md5": "1e68c231d0896b7eadcad1d7d8e76129", "file": "bios/scph7001.bin"    } ] },

    "ps2": { "name": "PS2", "biosFiles": [  { "md5": "28922c703cc7d2cf856f177f2985b3a9", "file": "bios/SCPH30004R.bin" },
                                            { "md5": "3faf7c064a4984f53e2ef5e80ed543bc", "file": "bios/SCPH30004R.MEC" },
                                            { "md5": "d5ce2c7d119f563ce04bc04dbc3a323e", "file": "bios/scph39001.bin"  },
                                            { "md5": "3faf7c064a4984f53e2ef5e80ed543bc", "file": "bios/scph39001.MEC"  },
                                            { "md5": "9a9e8ed7668e6adfc8f7766c08ab9cd0", "file": "bios/EROM.BIN"      },
                                            { "md5": "44552702b05697a14ccbe2ca22ee7139", "file": "bios/rom1.bin"      },
                                            { "md5": "b406d05922dac2eaf3c2e68157b1b468", "file": "bios/ROM2.BIN"      } ] },

    "ps3": { "name": "PS3", "biosFiles": [  { "md5": "a0b63a3e4ae92ed176d6b9a67ce447f0", "file": "bios/PS3UPDAT.PUP" } ] },

    # ---------- Nintendo ---------- #
    "fds":         { "name": "Nintendo Family Computer Disk System", "biosFiles": [ { "md5": "ca30b50f880eb660a320674ed365ef7a", "file": "bios/disksys.rom" } ] },

    "nds": { "name": "Nintendo DS", "biosFiles": [  { "md5": "94bc5094607c5e6598d50472c52f27f2", "file": "bios/firmware.bin" },
                                            { "md5": "df692a80a5b1bc90728bc3dfc76cd948", "file": "bios/bios7.bin" },
                                            { "md5": "a392174eb3e572fed6447e956bde4b25", "file": "bios/bios9.bin" },
                                            { "md5": "559dae4ea78eb9d67702c56c1d791e81", "file": "bios/dsi_bios7.bin" },
                                            { "md5": "87b665fce118f76251271c3732532777", "file": "bios/dsi_bios9.bin" },
                                            { "md5": "74f23348012d7b3e1cc216c47192ffeb", "file": "bios/dsi_firmware.bin" },
                                            { "md5": "d71edf897ddd06bf335feeb68edeb272", "file": "bios/dsi_nand.bin" }, ] },

    "gba": { "name": "Nintendo Gameboy Advance", "biosFiles": [  { "md5": "a860e8c0b6d573d191e4ec7db1b1e4f6", "file": "bios/gba_bios.bin" },
                                            { "md5": "32fbbd84168d3482956eb3c5051637f5", "file": "bios/gb_bios.bin" }, # Optional
                                            { "md5": "dbfce9db9deaa2567f6a84fde55f9680", "file": "bios/gbc_bios.bin" }, # Optional
                                            { "md5": "d574d4f9c12f305074798f54c091a8b4", "file": "bios/sgb_bios.bin" } ] }, # Optional

    "satellaview": { "name": "Satellaview", "biosFiles": [ { "md5": "96cf17bf589fcbfa6f8de2dc84f19fa2", "file": "bios/BS-X.bin"   } ] },
    "sufami":      { "name": "Sufami", "biosFiles":      [ { "md5": "d3a44ba7d42a74d3ac58cb9c14c6a5ca", "file": "bios/STBIOS.bin" } ] },

    "sgb": { "name": "Super Game Boy", "biosFiles": [ { "md5": "d574d4f9c12f305074798f54c091a8b4", "file": "bios/sgb_boot.bin" },
                                            { "md5": "e0430bca9925fb9882148fd2dc2418c1", "file": "bios/sgb2_boot.bin" },
                                            { "md5": "b15ddb15721c657d82c5bab6db982ee9", "file": "bios/SGB1.sfc" },
                                            { "md5": "8ecd73eb4edf7ed7e81aef1be80031d5", "file": "bios/SGB2.sfc" } ] },
    # ---------- Microsoft ---------- #
    "msx": { "name": "MSX", "biosFiles": [  { "md5": "364a1a579fe5cb8dba54519bcfcdac0d", "file": "bios/MSX.ROM"      } ] },

    "msx2": { "name": "MSX2", "biosFiles": [ { "md5": "ec3a01c91f24fbddcbcab0ad301bc9ef", "file": "bios/MSX2.ROM"     },
                                            { "md5": "2183c2aff17cf4297bdb496de78c2e8a", "file": "bios/MSX2EXT.ROM"  } ] },

    "msx2+": { "name": "MSX2+", "biosFiles": [ { "md5": "847cc025ffae665487940ff2639540e5", "file": "bios/MSX2P.ROM"    },
                                               { "md5": "7c8243c71d8f143b2531f01afa6a05dc", "file": "bios/MSX2PEXT.ROM" } ] },

    "xbox": { "name": "Xbox", "biosFiles": [{ "md5": "d49c52a4102f6df7bcf8d0617ac475ed", "file": "bios/mcpx_1.0.bin" },
                                            { "md5": "39cee882148a87f93cb440b99dde3ceb", "file": "bios/Complex_4627.bin" }] },

    # ---------- Commodore ---------- #
    "amiga500": { "name": "Amiga 500",     "biosFiles": [  { "md5": "85ad74194e87c08904327de1a9443b7a", "file": "bios/kick33180.A500"      },
    # ---------- Acorn Electron ---------- #
    "electron":   { "name": "Acorn Electron", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "4688a93aa298b9431c1788c9b90378c8", "zippedFile": "os_basic.ic2", "file": "bios/"},
                                                { "md5": "", "file": "bios/"  },
                                                { "md5": "2cc67be4624df4dc66617742571a8e3d", "zippedFile": "basic.rom", "file": "bios/"},
                                                { "md5": "df01cfe5894276de96bbd1c45b7e834c", "zippedFile": "os_300.rom", "file": "bios/"},
                                                { "md5": "", "file": "bios/"  },
                                                { "md5": "f3a39227b401a2ce8cdc7e4b7a860aaf", "zippedFile": "plus1.rom", "file": "bios/"},
                                                { "md5": "", "file": "bios/"  },
                                                { "md5": "9aa334b4e8f6d7565e6323e0f77110de", "zippedFile": "acp_dfs1770_200.rom", "file": "bios/"},
                                                { "md5": "83e15ca501899b0d5b2ce3f5ef696069", "zippedFile": "acp_dfs1770_210.rom", "file": "bios/"},
                                                { "md5": "b60ee811f4b805638478acd5297b16e0", "zippedFile": "adfs.rom", "file": "bios/"},
                                                { "md5": "62f5e1d3dae3a68d8fe4406a6f603dc3", "zippedFile": "pres_adfs_113.rom", "file": "bios/"},
                                                { "md5": "5c39baa89fe8a40a5167a53cc5ae7791", "zippedFile": "pres_adfs_115.rom", "file": "bios/"} ] },

    # ---------- Apple ][ ---------- #
    "apple2":   { "name": "Apple II", "emulator": "libretro", "core": "mame", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "4431aea380185e3f509285540d7cb418", "zippedFile": "342-0132-c.e12", "file": "bios/"},
                                                { "md5": "e6d453d8738e6df4f73df8c8051df3e8", "zippedFile": "342-0133-a.chr", "file": "bios/"},
                                                { "md5": "72924019cf1719765e4fde35e59c1c7d", "zippedFile": "342-0134-a.64", "file": "bios/"},
                                                { "md5": "0b150f4bfa090770a866cc5d214703f4", "zippedFile": "342-0135-b.64", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "b956c537e7b6b85ffa5c3493b1490d8a", "zippedFile": "341-0132-d.e12", "file": "bios/"},
                                                { "md5": "9123fff3442c0e688cc6816be88dd4ab", "zippedFile": "342-0265-a.chr", "file": "bios/"},
                                                { "md5": "6ac9338f6972eea01604f90d9a581f18", "zippedFile": "342-0303-a.e8", "file": "bios/"},
                                                { "md5": "6b11018a14668a7e3904319d2097dddc", "zippedFile": "342-0304-a.e10", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "89ca5cd551ffad9a557652a97dcb6627", "zippedFile": "341-0011.d0", "file": "bios/"},
                                                { "md5": "42333f24cd6e70696b212b042f3166aa", "zippedFile": "341-0012.d8", "file": "bios/"},
                                                { "md5": "5de50bebc41e59ae4eb27be4c24b6814", "zippedFile": "341-0013.e0", "file": "bios/"},
                                                { "md5": "56d9bb6730735a3b2bbcc75d1da7a8de", "zippedFile": "341-0014.e8", "file": "bios/"},
                                                { "md5": "cb63c41c5e72b5fda54feb5490efdefb", "zippedFile": "341-0015.f0", "file": "bios/"},
                                                { "md5": "8925b695ae0177dd3919dbea2f2f202b", "zippedFile": "341-0020-00.f8", "file": "bios/"},
                                                { "md5": "9ac0dc8c4d0002eb45b0b84be0bde5ec", "zippedFile": "341-0036.chr", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "2020aa1413ff77fe29353f3ee72dc295", "zippedFile": "341-0027-a.p5", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "80adbc2d79f347ec63f4b771ea32984d", "zippedFile": "cffa20ee02.bin", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "95b91e4a2fe7d6f13d353ba1827d37f9", "zippedFile": "sc01a.bin", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "5f1be0c1cdff26f5956eef9643911886", "zippedFile": "341-0028-a.rom", "file": "bios/"} ] },

    # ---------- Apple IIgs ---------- #
    "apple2gs":   { "name": "Apple IIgs", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "b956c537e7b6b85ffa5c3493b1490d8a", "zippedFile": "341-0132-d.e12", "file": "bios/"},
                                                { "md5": "b9f94f5d1be27dafcb8fe619ca3f4d15", "zippedFile": "341-0728", "file": "bios/"},
                                                { "md5": "e8e632aa592a61ef373b38af10ed54e1", "zippedFile": "341-0748", "file": "bios/"},
                                                { "md5": "c9e0e059faec0393fc429131a3af4ee9", "zippedFile": "341s0632-2.bin", "file": "bios/"},
                                                { "md5": "68ff96a624237d233e8d4c701f660dd1", "zippedFile": "apple2gs.chr", "file": "bios/"} ] },

    # ---------- Camputers Lynx ---------- #
    "camplynx":   { "name": "Camputers Lynx", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "b0ad5bf3070aea27b637e1998c81fa8c", "zippedFile": "lynx48-1.ic46", "file": "bios/"},
                                                { "md5": "b665e10211bbdbfaf2defb32d5580892", "zippedFile": "lynx48-2.ic45", "file": "bios/"},
                                                { "md5": "bc0760d8bf61c9683270266d259cd2ae", "zippedFile": "lynx4811.ic46", "file": "bios/"},
                                                { "md5": "dde90a794e5324002a9fd7f79cec3172", "zippedFile": "lynx4812.ic45", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "a0a8f136f69b5891d33993627a185697", "zippedFile": "danish96k3.ic44", "file": "bios/"},
                                                { "md5": "fcb706b3ba2ba61f6f7af1c28f420f94", "zippedFile": "dosrom.rom", "file": "bios/"},
                                                { "md5": "815afa653b61cbe70936b01aff700912", "zippedFile": "lynx9644.ic44", "file": "bios/"},
                                                { "md5": "3ccdb9dfe6018892383fcbb1a9167d76", "zippedFile": "lynx9645.ic45", "file": "bios/"},
                                                { "md5": "01a9770efdab17f089bbbbe53f5d69fa", "zippedFile": "lynx9646.ic46", "file": "bios/"},
                                                { "md5": "89ba52f683cd79638646874e965476b6", "zippedFile": "skorprom.ic44", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "fcb706b3ba2ba61f6f7af1c28f420f94", "zippedFile": "dosrom.rom", "file": "bios/"},
                                                { "md5": "5017fe3a2ea47038ae61e2aeb4f43d65", "zippedFile": "lynx128-1.ic1", "file": "bios/"},
                                                { "md5": "bf69d9538192f65571dbed43dc4a99bb", "zippedFile": "lynx128-2.ic2", "file": "bios/"},
                                                { "md5": "f9f54913cdedb22bb8f0c549ad121379", "zippedFile": "lynx128-3.ic3", "file": "bios/"} ] },

    # ---------- Video Game Music Player ---------- #
    "vgmplay":   { "name": "Video Game Music Player", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "108b113a596e800a02fece73f784eeb0", "zippedFile": "dl-1425.bin", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "96c11a92992bdff7f7e9d98a52621e1f", "zippedFile": "ym2413_instruments.bin", "file": "bios/"},
                                                { "md5": "", "file": "bios/" },
                                                { "md5": "8740932cda05e518a9955f1d08d6786f", "zippedFile": "ym2608_adpcm_rom.bin", "file": "bios/"} ] },

    # ---------- Epoch Game Pocket Computer ---------- #
    "gamepock":   { "name": "Epoch Game Pocket Computer", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "a0dd595eafb407a6a4b4ed800005a394", "zippedFile": "egpcboot.bin", "file": "bios/"} ] },

    # ---------- Tiger ---------- #
    "gamecom":   { "name": "Tiger", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "813364d4863b1d7b7b8fd6a97a416bcf", "zippedFile": "external.bin", "file": "bios/"},
                                                { "md5": "f7bcefb6daf923c8e5ea2eb69f619efe", "zippedFile": "internal.bin", "file": "bios/"} ] },

    # ---------- Atari XEGS ---------- #
    "xegs":   { "name": "Atari XE Game System", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "42cbd989802c17d0ac3731d33270d835", "zippedFile": "c101687.rom", "file": "bios/"} ] },

    # ---------- VTech CreatiVision ---------- #
    "crvision":   { "name": "VTech CreatiVision", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "3b1ef759d8e3fb4071582efd33dd05f9", "zippedFile": "crvision.u20", "file": "bios/"} ] },

    # ---------- VTech V.Smile ---------- #
    "vsmile":   { "name": "VTech V.Smile", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "851ff77a89ec3f4f2793eb4aede30e5f", "zippedFile": "vsmile_v100.bin", "file": "bios/"},
                                                { "md5": "f41fcc19ebe1e90fa359cd0df6293fab", "zippedFile": "vsmile_v102.bin", "file": "bios/"},
                                                { "md5": "11e59253c578c8f16ea2375ec398e4e9", "zippedFile": "vsmile_v103.bin", "file": "bios/"} ] },

    # ---------- VTech Socrates ---------- #
    "socrates":   { "name": "VTech Socrates", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "0efac0c2cc168c0d495e1c4e04ea9f5a", "zippedFile": "27-00817-000-000.u1", "file": "bios/"},
                                                { "md5": "99af124aa300ecd44f5dc9d5a2599778", "zippedFile": "speech_eng_internal.bin", "file": "bios/"},
                                                { "md5": "7046c2b27f51c9a5d33b4d6103f29acf", "zippedFile": "speech_eng_vsm1.bin", "file": "bios/"},
                                                { "md5": "6878302c362321eeee7e40d285cf7d30", "zippedFile": "speech_eng_vsm2.bin", "file": "bios/"},
                                                { "md5": "31c29c57e3d3e6788ba5817eaaa8b17a", "zippedFile": "speech_eng_vsm3.bin", "file": "bios/"} ] },

    # ---------- Entex Aventure Vision ---------- #
    "advision":   { "name": "Entex Adventure Vision", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "5729638bd856c475678467a353bd921c", "zippedFile": "b225__ins8048-11kdp_n.u5", "file": "bios/"},
                                                { "md5": "fc5e71445e4947a9d00eedbc66b13a8f", "zippedFile": "b8223__cop411l-kcn_n.u8", "file": "bios/"} ] },

    # ---------- Bitcorp Gamate ---------- #
    "gamate":   { "name": "Bitcorp Gamate", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "b411167df6dd563111729296f4c547f6", "zippedFile": "gamate_bios_bit.bin", "file": "bios/"},
                                                { "md5": "ef67993a94503c4b7798b5901c7dda52", "zippedFile": "gamate_bios_umc.bin", "file": "bios/"} ] },

    # ---------- Phillips CD-i ---------- #
    "cdi":   { "name": "Phillips CD-i", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "2969341396aa61e0143dc2351aaa6ef6", "zippedFile": "cdi200.rom", "file": "bios/"},
                                                { "md5": "ac80a92c988ce07fbd6a8f21ded34cf1", "zippedFile": "cdi220.rom", "file": "bios/"},
                                                { "md5": "ac0d468be366779c9df633be98da250a", "zippedFile": "cdi220b.rom", "file": "bios/"},
                                                { "md5": "3e59b8a9a423d3ecd612a32fe4e2d748", "zippedFile": "zx405037p__cdi_servo_2.1__b43t__llek9215.mc68hc705c8a_withtestrom.7201", "file": "bios/"},
                                                { "md5": "3d20cf7550f1b723158b42a1fd5bac62", "zippedFile": "zx405042p__cdi_slave_2.0__b43t__zzmk9213.mc68hc705c8a_withtestrom.7206", "file": "bios/"} ] },

    # ---------- Naomi 2 ---------- #
    "naomi2":   { "name": "Naomi 2", "biosFiles":  [ { "md5": "", "file": "bios/dc/"  },
                                                { "md5": "728bfe038ce280872057e365ebfc0fee", "zippedFile": "315-6146.bin", "file": "bios/dc/"},
                                                { "md5": "baf83367044924067e09856ba164aa6f", "zippedFile": "315-6215.bin", "file": "bios/dc/"},
                                                { "md5": "6f8ad6e3ab04c8ae1cbcaa652b91cf4e", "zippedFile": "epr-23605.ic27", "file": "bios/dc/"},
                                                { "md5": "f3f39513484df216d9979f6ae7577942", "zippedFile": "epr-23605a.ic27", "file": "bios/dc/"},
                                                { "md5": "ab046e62c51d67fb89eade2b8d5f6a8d", "zippedFile": "epr-23605b.ic27", "file": "bios/dc/"},
                                                { "md5": "096a5217ff6e6c6cafe65a03336760ab", "zippedFile": "epr-23605c.ic27", "file": "bios/dc/"},
                                                { "md5": "659d579ba9aef5b025d87323044e83f4", "zippedFile": "epr-23605c_multi.ic27", "file": "bios/dc/"},
                                                { "md5": "cbe0984d03d73869c23da5a3dd2ce207", "zippedFile": "epr-23607.ic27", "file": "bios/dc/"},
                                                { "md5": "b624ec7b3b90fdf3be103cdfb1679d1d", "zippedFile": "epr-23607b.ic27", "file": "bios/dc/"},
                                                { "md5": "a9d82db14b823a5a57885bea1a998eb7", "zippedFile": "epr-23607c.ic27", "file": "bios/dc/"},
                                                { "md5": "3b1315be24dc8d17f4fa18f3bfc5fe5c", "zippedFile": "epr-23608.ic27", "file": "bios/dc/"},
                                                { "md5": "0143cf852cb2a8a41f217bc688f62105", "zippedFile": "epr-23608a.ic27", "file": "bios/dc/"},
                                                { "md5": "8b88c1f5a06e9b560e887c3b9f879237", "zippedFile": "epr-23608b.ic27", "file": "bios/dc/"},
                                                { "md5": "b49702e4fadb3b5f9143a3d20afd04b5", "zippedFile": "epr-23608c.ic27", "file": "bios/dc/"},
                                                { "md5": "ecadb008179ca1e6f4fe3fa091ab5df2", "zippedFile": "epr-23609b.ic27", "file": "bios/dc/"},
                                                { "md5": "edeed38a9795e062a9af28c3eba22040", "zippedFile": "main_eeprom.bin", "file": "bios/dc/"},
                                                { "md5": "14e6bffff0d4dff6a5a547e7c43680ff", "zippedFile": "sp5001.bin", "file": "bios/dc/"},
                                                { "md5": "689d2228b00fb59781f82af6e8ecdb78", "zippedFile": "sp5001-a.bin", "file": "bios/dc/"},
                                                { "md5": "8373a11106c1c2fc21ac839f75ea488f", "zippedFile": "sp5001-b.bin", "file": "bios/dc/"},
                                                { "md5": "7eecfb8e8f82b47ffab92a0c5528100e", "zippedFile": "sp5002-a.bin", "file": "bios/dc/"},
                                                { "md5": "960ece0dc22a7c5ff81c812a2993e7cc", "zippedFile": "x76f100_eeprom.bin", "file": "bios/dc/"} ] },

    # ---------- Hikaru ---------- #
    "hikaru":   { "name": "Hikaru", "biosFiles":  [ { "md5": "aac601811a25d7b31a3d5f3f1f82f338", "file": "bios/" },
                                                { "md5": "e95415b161121bef35ade12367138c63", "file": "bios/"} ] },

    # ---------- Playstation Vita ---------- #
    "psvita":   { "name": "PS Vita", "biosFiles":  [ { "md5": "59dcf059d3328fb67be7e51f8aa33418", "file": "bios/psvita/PSP2UPDAT.PUP" },
                                                { "md5": "f2c7b12fe85496ec88a0391b514d6e3b", "file": "bios/psvita/PSVUPDAT.PUP"} ] },

    # ---------- GCE Vectrex ---------- #
    # Not required for libretro-vecx, the default emulator
    "vectrex":   { "name": "GCE Vectrex", "emulator": "libretro", "core": "mame", "biosFiles":  [ { "md5": "", "file": "bios/"  },
                                                { "md5": "ab082fa8c8e632dd68589a8c7741388f", "zippedFile": "exec_rom.bin", "file": "bios/"},
                                                { "md5": "a9c238473229912eb757ff3dfe6f4631", "zippedFile": "exec_rom_intl_284001-1.bin", "file": "bios/"} ] },

The roms/ folder contains all the folders for all the systems available on your platform. Adding more folders will not add the system to Batocera; if the folder for that system isn't there then the emulator for that system is not present on your platform.

When installing your own ROMs, make sure that you have them in a suitable format for the emulators you are going to use. For example, if you want to add a NES ROM, make sure that your ROM file extension is listed in the roms/nes/_info.txt file. For this particular system, acceptable ROM formats are .7z .nes .zip, so an acceptable game would be beans.nes. You have one _info.txt file in each ROM system directory by default. New _info.txt files are added as new systems become available. Descriptive names for each system can be found on the system page.

By default, Batocera will hide systems which do not have ROMs present on the drive in the system list. Once ROMs in the right format are added to the appropriate folders and the gamelist is refresh, the new systems will appear.

When multiple emulators are available for the one system, but not all of them accept the same ROM formats, you'll get prompted with a message telling you that your ROM might not be used with the emulator selected when you try to launch a game in an incompatible format. Most of the time, at least. If not sure, refer to the aforementioned _info.txt file.

  • add_games_bios.txt
  • Last modified: 12 months ago
  • by lbrpdx
