Do-It-Yourself Arcade Controls

Many DIY or prebuilt arcade cabinets, cocktail tables, and bartops use an encoder/controller board to connect joysticks and buttons to the system running Batocera (for example, Ultimarc I-PAC devices or JAMMASD boards). These boards often present themselves as a keyboard, meaning button presses generate keyboard KEY_ events.

Keyboard-style input isn’t always ideal for emulation, because some systems and configurations expect a gamepad/controller device (for example, devices recognized as joystick/gamepad input rather than a keyboard). Some boards (like certain Ultimarc models) can be switched to appear as DInput/XInput controllers, but cabinets often add another wrinkle: they may include dedicated buttons for cabinet functions like Menu, Exit, and Pause.

Normally, Batocera uses a HOTKEY + ANOTHER BUTTON combination to trigger actions like Menu, Exit, or Pause (see Hotkey shortcuts). With dedicated cabinet buttons, requiring an additional hotkey can be redundant.

Since Batocera v41, two tools help address these common cabinet needs:

• keyboardToPads: Converts specific keyboard-style encoders into one or more virtual controller devices by remapping input events (so they behave like standard controllers in emulators).
• Hotkeygen: Listens for specific KEY_/BTN_ events from input devices and triggers Batocera hotkey actions (Menu/Exit/Pause, etc.) by emitting the configured key sequence (or running a command). This makes dedicated cabinet buttons work without requiring a separate hotkey button.

These tools can be used together: keyboardToPads can produce clean controller-style inputs, and hotkeygen can interpret selected button events as hotkey actions.

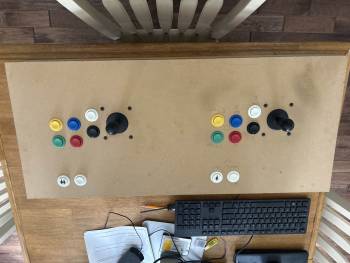

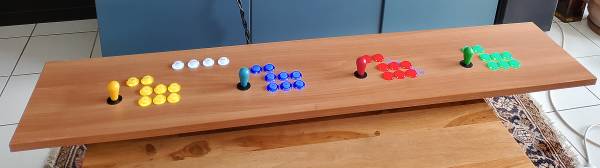

Below are some images of either prebuilt or custom build arcade controllers.

Some prebuilt arcade cabinet vendors distribute Batocera and related software without clearly meeting the licensing and attribution obligations.

The following retailers have been reported to respect licensing requirements:

• https://iconicarcade.com/
• https://recroommasters.com/

Contextual hotkeys are the way Batocera maps hotkeys to actions in emulators. For each emulator, the emulator hotkeys are referenced and mapped to Batocera hotkeys. The following is the list of hotkeys they may be help when configuring keyboardToPads and hotkeygen:

Configuring hotkeygen will allow you use dedicated cabinet buttons such Menu, Exit, or Pause without having use it in combination with a hotkey.

While Emulationstation is running, the hotkeygen --list command will return something similar to :

$ hotkeygen --list
Context [emulationstation]:
  exit------------> KEY_ESC
  menu------------> KEY_SPACE
  files-----------> KEY_F1
# device /dev/input/event5 [Ultimarc I-PAC 4] (no Ultimarc_IPAC_4-d209-430.mapping file found)
  KEY_PAUSE-------> pause
# device /dev/input/event3 [AT Translated Set 2 keyboard] (no AT_Translated_Set_2_keyboard-01-01.mapping file found)
  KEY_PAUSE-------> pause
# device /dev/input/event23 [Xtension hotkeys] (no Xtension_hotkeys-00-00.mapping file found)
  KEY_EXIT--------> exit------------> KEY_ESC
  KEY_MENU--------> menu------------> KEY_SPACE
  KEY_PAUSE-------> pause

This example response above tells you:

• The current context is emulationstation
• The hotkey “exit” will send the equivalent of the keyboard KEY_ESC (escape key)
• The hotkey “menu” will send the equivalent of the keyboard KEY_SPACE (space bar)
• The hotkey “files” will send the equivalent of the keyboard KEY_F1 (F1 key)
• There are 3 devices are able to generate these events (via KEY_EXIT, KEY_MENU, and so on)
• There is no custom mapping file found for any of the 3 devices. The standard hotkeys will be applied.

Here is another example of context while running PS Portable emulator (ppsspp):

$ hotkeygen --list
Context [ppsspp]:
  exit------------> ['KEY_LEFTALT', 'KEY_F4']
  save_state------> KEY_F3
  restore_state---> KEY_F4
  menu------------> KEY_F9
  pause-----------> KEY_F9
  next_slot-------> KEY_F6
  previous_slot---> KEY_F5
$

You can also simulate the hotkeys from the command line. Within any context, for example, the hotkey “exit” will quit the game. It can be launched via the command:

hotkeygen --send exit

And when available, the following command will pause the emulator. With most emulators, the hotkeys menu and pause do the same:

hotkeygen --send pause

If you add the parameter –debug, you can get more details. For example, the command hotkeygen --list --debug will give you the paths used to customize your contexts.

Defaut hotkeygen config is available in /etc/hotkeygen. Files common_context.conf and default_context.conf can be created in the folder /userdata/system/configs/hotkeygen. If any, they will be merged with the default config.

• common_context.conf is used to define hotkeys always available, whatever the context, like taking a screenshot
• default_mapping.conf is used to define which keys set which action. In theory, you don't need to customize this file.

You need to restart the hotkeygen service so that any update on these file is taken.

Keyboard-style input isn’t always ideal for emulation, because some systems and configurations expect a gamepad/controller device. keyboardToPads can convert these keyboard encoders to one or more virtual gamepads/controllers.

Batocera can detect, and has prebuilt configuration files for, some of the more common keyboard encoders.

To check whether there is a prebuilt configuration file for your device, you can run: keyboardToPads --search. Below is an example output:

$ keyboardToPads --search
device /dev/input/event3 : "Ultimarc I-PAC 4"
  config file name : UltimarcIPAC4.vd209.p0430.yml
  system config found at /usr/share/keyboardToPads/inputs/UltimarcIPAC4.vd209.p0430.yml
  you can create a custom config at /userdata/system/configs/keyboardToPads/inputs/UltimarcIPAC4.vd209.p0430.yml. Take example on files in /usr/share/keyboardToPads/inputs.

It will display your pads if any, and the file you need to create in order to customize it.

Files are in yaml format.

There are some file samples in /usr/share/keyboardToPads/inputs.

Here is an example of a Rec Room Masters Xtension 2 Player Plus controller:

# Xtension 2 Player Plus
target_devices:
  - name: Xtension 2P Player 1
    type: joystick
    mapping:
      "key:up":        "abs:hat0y:-1"
      "key:down":      "abs:hat0y:1"
      "key:left":      "abs:hat0x:-1"
      "key:right":     "abs:hat0x:1"
      "key:leftshift": "btn:south"
      "key:enter":     "btn:south"
      "key:z":         "btn:east"
      "key:leftctrl":  "btn:west"
      "key:leftalt":   "btn:north"
      "key:space":     "btn:tl"
      "key:x":         "btn:tr"
      "key:c":         "btn:start"
      "key:1":         "btn:start"
      "key:v":         "btn:select"
      "key:5":         "btn:select"
  - name: Xtension 2P Player 2
    type: joystick
    mapping:
      "key:r": "abs:hat0y:-1"
      "key:f": "abs:hat0y:1"
      "key:d": "abs:hat0x:-1"
      "key:g": "abs:hat0x:1"
      "key:w": "btn:south"
      "key:i": "btn:east"
      "key:a": "btn:west"
      "key:s": "btn:north"
      "key:q": "btn:tl"
      "key:k": "btn:tr"
      "key:j": "btn:start"
      "key:2": "btn:start"
      "key:1": "btn:select"
      "key:6": "btn:select"
  - name: Xtension hotkeys
    type: hotkeys
    mapping:
      "key:tab": "key:menu"
      "key:p":   "key:pause"
      "key:esc": "key:exit"
      ["key:1", "key:v"]: "key:exit" # exit from combination player 1 select + player 2 select, require batocera 43
      ["key:c", "key:space"]: "key:1" # player 2 select from combination player 1 start+tl, require batocera 43

Using the example above, we can determine the following information:

• The controller is split into 3 virtual devices: 2 pads and 1 hotkey device.
• The name of the first virtual pad is Xtension 2P Player 1. Rename Xtension 2P Player 1 & 2 to the name of your controller.
• Its type is “joystick”. Possible types are “joystick” for pads, and “hotkeys” for hotkeys.
• mapping is a key-value association table to convert each key from the real device into the virtual pad. You can assign two or more physical keys to a single pad button.

The name of the first virtual pad is Xtension 2P Player 1. Rename Xtension 2P Player 1 & 2 to the name of your controller. Its type is “joystick”. Possible types are “joystick” for pads, and “hotkeys” for hotkeys.

mapping is a key-value association table to convert each key from the real device into the virtual pad. You can assign two or more physical keys to a single pad button.

You can use the following command to find the input keys :

evsieve --input /dev/input/event3 --print

You may also want to use btn:tl2 and btn:tr2 (left and right second triggers) depending on your context.

In case of error, you can try to run this command (with the event number corresponding to your setup):

keyboardToPadsLauncher /dev/input/event3 run

Ultimarc is major brand of interface controllers including I-PAC, J-PAC, A-PAC, Mini-PAC, Opti-PAC, U-HID and more.

If nothing happens or you want to know more, keep reading.

If you are using Batocera 41 or greater and your Ultimarc encoder has dedicated buttons (e.g. Menu, Pause, Exit), it doesn't offer this functionality, or you don't want to upgrade the firmware see keyboardToPads. The Rec Room Master Controllers discussed in that section are based on Ultimarc encoders. If you set them to keyboard mode, (`[Start1]+[P1SW1]`) you can configure the encoder in the same way as a Rec Room Master controller. It might wind up having a different name and require its own yml config file. You can use the command `keyboardToPads –search` to find out the name and the required config file name and then follow the remaining instructions.

Xarcade2jstick has been patched to support keyboard encoders. You may have to reconfigure a few keys of your encoder as, sadly, x-gaming X-Arcade devices didn't map as usual mame controllers.

Do not change the key mappings of your I-PAC or Mini-PAC as it is unnecessary, but the following procedure only applies if your encoder is in keyboard mode, which is the default mode when they leave the factory.

Configuring your keyboard encoder

Follow these steps :

• login to your Batocera box locally or through SSH
• find your encoder's device name with ls /dev/input/by-id. Usually, there is a trailing kbd in the event name. For example : usb-Ultimarc_IPAC_2_Ultimarc_IPAC_2_9-if01-event-kbd

PLEASE NOTE: a single encoder can have multiple possible names, so try all of them For example: usb-Cypress_I-PAC_Arcade_Control_Interface-event-kbd → works usb-Cypress_I-PAC_Arcade_Control_Interface-if01-event-kbd → doesn't work

• Now remount / as read-write mount -o remount,rw /
• Create an empty file that has the same name of your keyboard device found 2 steps above touch /usr/share/batocera/datainit/system/configs/xarcade2jstick/devicename. With the previous example : touch /usr/share/batocera/datainit/system/configs/xarcade2jstick/usb-Ultimarc_IPAC_2_Ultimarc_IPAC_2_9-if01-event-kbd
• Edit batocera.conf and set controllers.xarcade.enabled=1 (it should already be set by default but check it)
• Save your modifications through SSH batocera-save-overlay
• Reboot by typing reboot

Now all your keys should be usable, that is for each player : 4 directions joystick, select, start, hotkey, A, B, X, Y, L1 and R1. For now it is not possible to attribute more buttons like L2, R2, L3 or R3

You must now configure both the controllers in the Controller Configuration menu and also associate the right controller to player 1 and 2.

Since Batocera v34, Ultimarc has been included. Read more here.

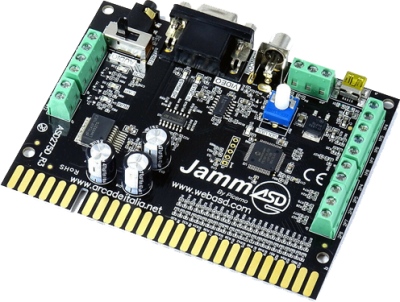

This guide will help you to use your original arcade cabinet controls (sticks and buttons) under Batocera. The simplest way actually, is to use a JammASD controller.

For the moment, this controller (used to send VGA signal, sound, and control information to your JAMMA connector) is not known by EmulationStation, but a few tips can help you to use Batocera in your original cabinet.

Under EmulationStation, JammASD's controls are considered as a keyboard, and it's not the easiest way to configure 2 players controllers.

So, you have to change your JammASD drivers into X-Arcade drivers to use all your arcade panel.

1. Connect to Batocera using SSH

2. Type:

ls /dev/input/by-id

You will see this interface : usb-ASD_JammASD_Interface_ASD275D-if01-event-kbd

touch /userdata/system/configs/xarcade2jstick/usb-ASD_JammASD_Interface_ASD275D-if01-event-kbd

3. Reboot your Batocera

Now, you only have to edit your controls under EmulationStation menu. Then, your arcade panel will be known as Xarcade-to-Gamepad Device 1 and Xarcade-to-Gamepad Device 2

Note: With this tip, it's possible now to have START P1 + A to credit your arcade games ^^

The entire article is under construction but this part is especially under construction.

Quick index:

• Dragonrise encoders Player 1 and Player 2 swapped
• I have a trackball and spinner and sometimes they stop working

Symptoms: I use Dragonrise encoders and player 1 and player 2’s inputs are swapped

Cause: - <What’s actually happening>

Fix:

For Batocera 40 and newer, the fix has been reported as not being necessary any longer, but this was an issue in previous versions.

Make sure they are all wired exactly the same, each button going to the same USB encoder.

If that’s not working or is impossible to do due to your setup’s requirements, it’s possible to work around by using a USB quirk. Add the following onto the end of your boot line (on Raspberry Pi images, this is at /boot/uEnv.txt, x86_64 users can refer to here):

usbhid.quirks=0×0079:0×0006:0×040

It’s added onto the end of the line, not on a new line. For instance, your boot line might end up looking like this:

    APPEND=label=BATOCERA rootwait quiet loglevel=0 console=ttyAML0,115200n8 console=tty3 vt.global_cursor_default=0 usbhid.quirks=0×0079:0×0006:0×040

Notes -

Symptoms: When you have both trackball and spinner plugged into Batocera, they may occasionally be read in a different than the last time the devices was booted and, as a result, they will be assigned a different Index number and stop working.

Cause:

Arcade trackballs and spinners are handled as mouse devices.

The problem comes from the way newer versions of RetroArch recognize mouse devices, by ID instead of name. The ID that they can have is thus unpredictable, resulting in configs (such as retroarchConfig[‘input_player1_mouse_index’] = “Barcode Reader Mouse”) no longer working.

Fix:

For now, this can be worked around using a script to automatically log and change the ID as appropriate. Save it to /userdata/system/configs/emulationstation/scripts/game-start/mouse-fix.sh and mark it as executable with chmod +x /userdata/system/configs/emulationstation/scripts/game-start/mouse-fix.sh:

mouse-fix.sh

#!/bin/bash

# NAME OF DESIRED MOUSE INPUT
# Can be found via the RetroArch log file or by running 'evtest'
mouse_name="Combined Analog Arcade Controls"

# RetroArch log file must be enabled for this to work
batocera-settings-set global.retroarch.log_dir "/userdata/system/logs/retroarch"
batocera-settings-set global.retroarch.log_to_file true
batocera-settings-set global.retroarch.log_to_file_timestamp false

# Read the mouse index values from the last RetroArch log file
# and update the config for the next time RetroArch is run
# NOTE: Using '~' as a sed delimiter as some device names include the traditional '/' delimiter
# NOTE: Pipe to 'head -1' to return the index of the first matching device, as some devices expose multiple inputs
mouse_index=$(sed -En "s~.*Mouse.* #(.*): \"$mouse_name\".*~\1~p" /userdata/system/logs/retroarch/retroarch.log | head -1)
if [[ -z "$mouse_index" ]]; then
    mouse_index=0
fi
batocera-settings-set global.retroarch.input_player1_mouse_index $mouse_index

You may need to launch a game twice in order for it to have an effect.

Keep updated by watching this space: https://github.com/libretro/RetroArch/issues/7638. Original forum post describing this issue and its workaround: https://forum.batocera.org/d/6652-being-able-to-use-trackball-and-spinner-using-per-mouse-index

Batocera may make the workaround process easier in the future by the inclusion of evsieve.
