Input problems
Under construction.
ROMs take a long time to load
Some controllers (including Xbox One and 8-bitdo ones) can cause certain cores to take a long time to load a ROM, upwards of thirty seconds. In these situations, it can be worked around by setting the controller to D-input mode (may be referred to as “Android mode” by some manuals). Read more about it in this Retropie forum post.
Bluetooth connection
- Reduce the distance from the controller to the Batocera machine.
- Disable the internal Wi-Fi - this helps to extent signal strength, you can use
rfkill wifi
to disable/enable Wi-Fi. - Force a lower baud rate in
/etc/init.d/S31emulationstation
or/etc/init.d/S32bluetooth
. Smaller values of 115200 or 230400 have been known to alleviate input lag on a Pi 3B. - Buy a new BT adapter and put it to your Raspberry. Add
dtoverlay=pi3-disable-bt
in/boot/config.txt
to disable internal BT module.
No controller detected even when connected via USB
Few things to try:
- Use a different USB port
- Ensure controller itself is even functional
- If using a third-party controller, switch the input mode on it (refer to your controller's manual)
- D-input typically works best, followed by X-input, then “Mac” and Android modes
- Disable IOMMU setting in BIOS
- Ensure there's no other obvious settings in the BIOS that could be disabling USB functionality
- Add
hid.ignore_special_drivers=1
to theAPPEND
line in/boot/EFI/batocera/syslinux.cfg
(for Batocera v39 or higher) or/boot/EFI/BOOT/syslinux.cfg
(for Batocera v38 or lower) in the boot partition. The line should look similar to:APPEND label=BATOCERA console=tty3 quiet loglevel=0 vt.global_cursor_default=0 mitigations=off hid.ignore_special_drivers=1
Detailed forum post. - Clean the contacts with rubbing alcohol (when everything is turned off and disconnected from power), let it dry, and try again
- Scream
If all else fails, please provide a detailed issue report so that the devs can look into it. Here's a real example.
Controller connected and detected, but no inputs
Try configuring the controller by manually editing the /userdata/system/configs/emulationstation/es_input.cfg
file.
Controller connected, detected and making inputs, but they are unexpected/ghost inputs
Ensure that all of the controller's inputs are in a neutral position when plugging in/connected the controller.
If that still gives unexpected ghost inputs during mapping, try to repair the mapping process by renaming /userdata/system/.sdl2
to /userdata/system/.sdl2_bad
and immediately restarting ES ([Alt]
+ [F4]
or restart via SSH). If this fixes the issue, it could be because of Batocera's neutral position detection method failing, please report such issues to the Github and the steps to reproduce.
Run cat /userdata/system/.sdl2/<GUID><name of controller>.cache
to grab the neutral values that have been detected.
When using "Emulate cursor with joystick", the cursor is moving by itself
You can increase the deadzone for pad2key's mouse function by doing the following:
- Download the following file and save it to
/etc/evmapy.json
:- evmapy.json
{ "mouse_config": { "every": 0.005, "deadzone": 0.15 } }
- Launch a game using the feature and test the cursor. If it's still drifting, increase the “deadzone” value and try again. Higher values decrease the accuracy of pad2key's mouse emulation, so change this conservatively.
- When a suitable value has been found, run
batocera-save-overlay
.
Diagnose joysticks issues
Physical joystick ←→ Linux driver ←→ Linux events stack ←A→ SDL2 library ←B→ EmulationStation
From your joystick to Batocera's menu interface (EmulationStation), there are several technical steps. There are two tools to analyze two separate parts of the sequence: evtest
and sdl2-jstest
.
evtest
acts on point A in the above diagram, used to debug very low-level issues (like a button's state change not being registered by the controller or an incorrect amount of inputs being registered). sdl2-jstest
acts on point B in the above diagram, used to debug high-level issues (like EmulationStation not reacting correctly when button X is pressed, certain emulator not “seeing” a controller's inputs which otherwise work fine in other programs, etc.).
evtests
events
in the linux kernel are the way to handle mouses, keyboards, joysticks, etc…
sdl2 is a library to help to code program compatible with linux, windows, mac os x, … it converts linux events to a common way to define events. On linux, events are define in /usr/include/linux/input-event-codes.h. For example, the button “yellow” if your joystick has one is :
#define KEY_YELLOW 0x190 (1*16*16 + 9*16 + 0 = 400)
On Windows, possibly that this button is not defined, or at least, for sure, with an other value, while on Linux, the value is arbitrary. Thus, SDL doesn't use the code. Instead, SDL uses button numbers, thus, this button may be “BUTTON 1”.
Let's see an example :
- Connect via ssh to batocera
- run evtest to check that linux sees your joysticks :
In my case, i've only 1 joystick plugged, it displays :
# evtest No device specified, trying to scan all of /dev/input/event* Available devices: /dev/input/event0: Bigben Interactive Bigben Game Pad Select the device event number [0-0]:
Press 0 to see linux events on this joystick. In my case, when i press one button (button BTN_C), it displays :
Event: time 1492442283.255053, type 1 (EV_KEY), code 306 (BTN_C), value 1 Event: time 1492442283.255053, type 1 (EV_KEY), code 306 (BTN_C), value 0
value 1 is when the button is pressed. value 0 is when the buton is released.
Some general information, like the list of buttons available are provided by :
evtest --info /dev/input/event0 udevadm info -q all -n /dev/input/event0
sdl2-jstest
Run sdl2-jstest --list
to check what EmulationStation sees when you press buttons
In my case, it displays :
# export DISPLAY=:0.0 # sdl2-jstest --list Found 1 joystick(s) Joystick Name: 'Bigben Interactive Bigben Game Pad' Joystick Path: '/dev/input/event0' Joystick GUID: 030000006b1400000209000011010000 Joystick Number: 0 Number of Axes: 4 Number of Buttons: 13 Number of Hats: 1 ... Button code 0: 304 Button code 1: 305 Button code 2: 306 ...
To see the events, run sdl2-jstest -e 0 (0 is the joystick number) When I press C, it displays :
... SDL_JOYBUTTONDOWN: joystick: 0 button: 2 state: 1 code:306 SDL_JOYBUTTONUP: joystick: 0 button: 2 state: 0 code:306 ...

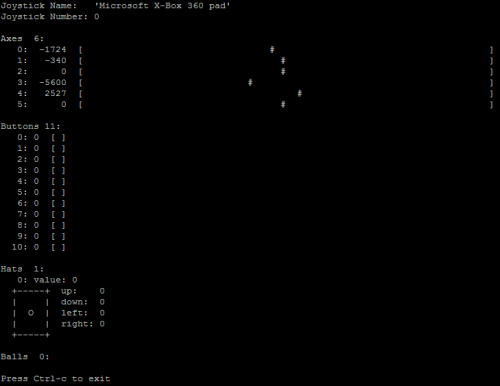

You can see a graphical representation of your controller by running:
sdl2-jstest --test #
where #
is the number of the joystick you want to test.
Configuring es_input manually
Although Batocera should be able to handle the mapping of nearly any controller, there comes a time where it is only feasibly possible to map a controller manually, such as when the controller is sending multiple signals at once for a single button press or when Batocera thinks the gyroscope is an input for all buttons. The /userdata/system/configs/emulationstation/es_input.cfg
file can be edited manually.
We need to know the codes the controller's inputs are sending. Open up two SSH sessions to Batocera. Yes, you can do that, just open the program twice. On one session:
- Type
sdl2-jstest -l
and press[Enter]
. Take note of the number of the joystick you intend to remap. - Type
sdl2-jstest --test #
and press[Enter]
, where # is the joystick number.
On the other session:
- Type
evtest
and press[Enter]
. - Type in the number of the input device you intend to remap (this may be different from the one in the other session).
The controller's inputs will now output values on both SSH sessions. You now have all the input information you need to make a manual remap.
es_input syntax
The syntax for each input line mapped:
<input name="<name>" type="<type>" id="<#>" value="<#>" code="<#>" />
The two leading spaces are tabs, not spaces. This is important.
Explanation of the attributes:
- name is the virtual input on the Batocera Retropad, the input that is ultimately sent to the emulator. This is most similar to a SNES controller, however
pageup
andpagedown
represent[L1]
and[R1]
respectively. Refer to the already provided configs ines_input.cfg
for examples. - type is the type of input being scanned for on the controller. This can be either
button
oraxis
. It does not have to match up with the kind of input specified in name. - id is the number affected in the
sdl2-jstest
session when the button/axis is manipulated. This behaves differently for hats (usually D-pads), as they determine their direction pressed from value alone (when there is only one hat, it is always 0). - value is the value that the control is “pressed” on in the
evtest
session. Typically boolean 0 or 1 for buttons, decimal -1 to 1 for axis. - code is the code that the control is “pressed” on in the
evtest
session. This should be unique to every input.
So for instance a button input line might look like this:
<input name="a" type="button" id="0" value="1" code="304" />
The “a” is the input that is sent to the emulator, typically bound to on the controller itself. “button” is its type. An id of “0” is the class it belongs to; typically all the face buttons on a controller will belong to the same id class (so “b” would also have an id of “0”). The value of “1” is achieved when the button is depressed, so this is what the emulator is looking for when reading inputs, all other values will fail to register this as the input (analog controls work differently, example below). And the code “304” is the unique part that associates the configured input with that physically button; this should always be a unique value per input on the controller.
An axis might look like this:
<input name="joystick1left" type="axis" id="0" value="-1" code="0" />
The “joystick1left” input represents the first analog stick (“1”, usually the left stick) being pushed to the left (usually a negative axis value). It is of the “axis” type input. Belongs to the id class of “0”. The value of “-1” indicates the direction the axis must be pushed toward to represent the input name (in this example, pushing left on the left analog stick). And the code “0” is unique to the stick.
Batocera's configgen allows for “logical deduction” in regard to the axis inputs; if “joystick1left” is achieved at axis value “-1”, then it assumes that “joystick1right” must be the opposite at axis value “1” without explicitly needing to be told. So theoretically, only two lines are needed for a typical analog stick:
<input name="joystick1left" type="axis" id="0" value="-1" code="0" /> <input name="joystick1up" type="axis" id="0" value="-1" code="1" />
And this would cover all directions the stick could be pushed in.
There is no logical deduction logic for any buttons, they must all be manually specified.
