GT King/GT King Pro

Under construction

There are multiple ways to do this. It is advisable to already be extremely familiar with flashing Android firmwares onto ARM-based TV boxes, as a lot can go wrong and it's very easy to end up with a bricked device. Be weary.

Big alert box to make you aware that there is a very high chance of bricking the device when attempting this. Once done there is no way to go back to how it came from the factory.

The GT King/King Pro comes with an 8GB SD card. It is recommended to throw this out and buy a new SD card that's at least 16GB for use with Batocera, as that satisfies the minimum size requirements if you need to use the card itself for Batocera. It may not be required, depending on your box. It is possible to flash over the firmware from the old card to the new one if desired, but here we will be using CoreElec (for the GT King Pro) or EmuElec (shipped with the GT King).

  1. Boot into CoreElec/EmuElec and copy the Batocera image over to somewhere easily accessible. The /storage folder is recommended.
  2. Connect to the box via SSH.

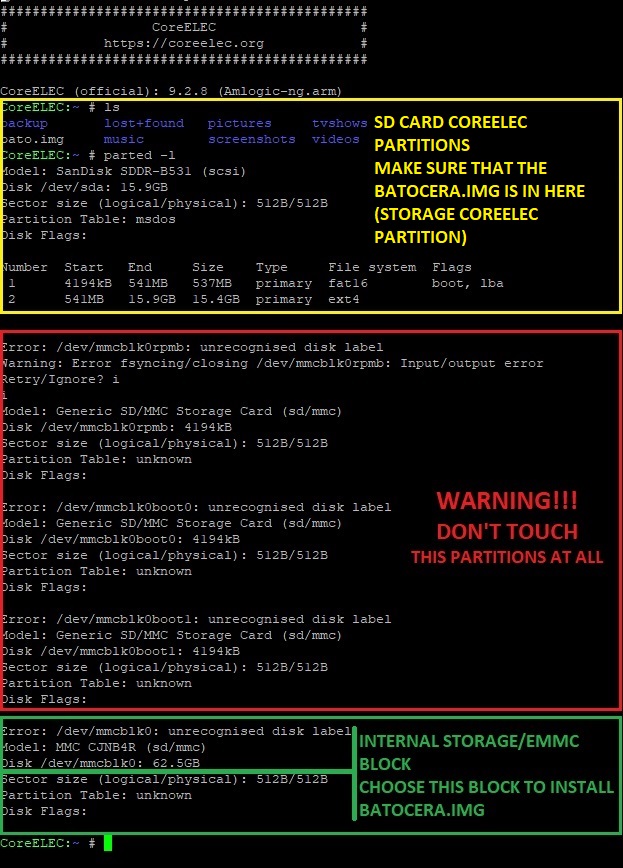

  3. Run ls. This will show the current directory, which can be used to confirm that the Batocera image was copied over correctly. In this example, the image is batocera-s922x-gtkinpro-33-20220203.img. If you downloaded it in .gz format, make sure you use gzip -d to unzip it before moving forward.
  4. Then run parted -l to see the partitions of the current drive. Note down which partition contains the 62.5GB internal storage (its “model” will appear as MMC CJNB4R) and its mounted location. In this example, /dev/mmcblk0.

    Going beyond this point it is possible to brick the device. Be 100% sure that all the information is correct and that you are aware of the risks.

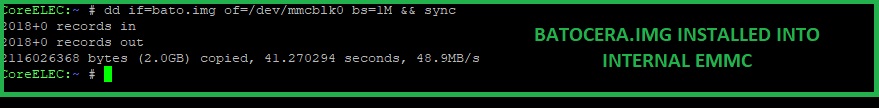

  5. Once you have confirmed that the image is present and the correct internal eMMC block to install into, run the following command:
    dd if=<path/to/image/file> of=<path/to/internal/emmc> bs=1M && sync
    • In this example:
      dd if=batocera-s922x-gtkinpro-33-20220203.img of=/dev/mmcblk0 bs=1M && sync

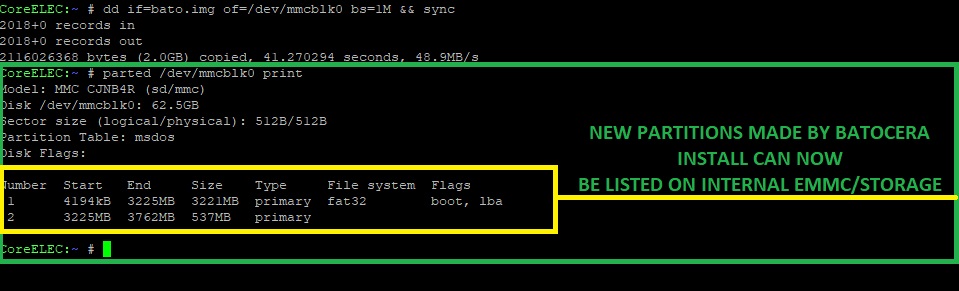

  6. Confirm that the Batocera image has been flashed by running parted <path/to/internal/emmc> print:
  7. Power down the device and remove the CoreElec SD card.

You have successfully flashed Batocera onto the internal storage. But now we need to boot it. Depending on the exact box, there could be various additional steps required. Try the following in the order specified:

  1. Just boot it up again. If it fails to boot, move onto the next step.
  2. While it is disconnected to the power, press the tv box reset button. While keeping it pressed down, connect the power. Once you see the Batocera splash screen, it is okay to release the button. If Batocera still does not boot, move onto the next step.
  3. Flash Batocera to the SD card, insert it into the box and repeat step 2.

If it still fails after this… RIP. You were warned.
