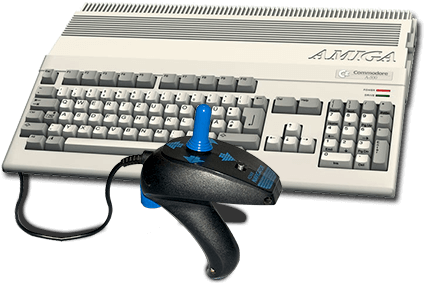

Amiga 500
The Amiga 500 (a.k.a. Amiga OCS/ECS a.k.a. Amiga home computer) is a line of personal computers developed by Commodore/Escom/QuikPak. Its first, the Amiga 1000 model was released in 1985.
Early models were released with a Motorola 6800 CPU. These are referred to as the Original ChipSet (OCS). These include:
- Amiga 1000
- Amiga 2000 A-model
- Amiga 500
- Amiga 2000
- Amiga 25001)
- Amiga 1500
The Amiga 500 is the most well-known of the computer line, so far as to skew the perception of the “Amiga home computer line” into being the “Amiga 500 line”, even though it was the third in the family to be released.
Towards the end of the OCS lifespan, newer models with a Motorola 68030 CPU were released. These are referred to as the Enhance ChipSet (ECS). These include:
- Amiga 3000
- Amiga 3000T
- Amiga 3000UX
- Amiga 500+
- Amiga 600
Then the Advanced Graphics Architecture (AGA) models were released, which are considered a separate system in Batocera.
When available, the Amiga 1200 version of a game is usually superior and preferred.
The ECS chipset is capable of switching between PAL/NTSC modes as needed. Outside of that, the ECS chipset didn't offer much enhancement for games, just software, so Batocera really only concerns itself with the Amiga 500.
This system scrapes metadata for the “amiga” group and loads the amiga500
set from the currently selected theme, if available.
Grouped with the “amiga” group of systems.
Quick reference
- Accepted ROM formats:
.adf
,.uae
,.ipf
,.dms
,.dmz
,.adz
,.lha
,.hdf
,.exe
,.m3u
,.zip
- Folder:
/userdata/roms/amiga500
Emulators | Accepted ROM formats |
---|---|
fsuae: A500 | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
fsuae: A500+ | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
fsuae: A600 | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
fsuae: A1000 | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
fsuae: A3000 | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
amiberry: A500 | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .zip |
amiberry: A500+ | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .zip |
libretro: puae | .adf , .uae , .ipf , .dms , .dmz , .adz , .lha , .hdf , .exe , .m3u , .zip |
BIOS
If you're only interested in Amiga 500 games then the only BIOS that's required is kick34005.A500
. The rest are if you'd like to emulate specific models/revisions, or need to work around an in-game bug that only affects certain OS versions.
MD5 checksum | Share file path | Description | Notes |
---|---|---|---|
85ad74194e87c08904327de1a9443b7a | bios/kick33180.A500 | Kickstart v1.2 rev 33.180 | AmigaOS 1.2 (the first OS bundled with the Amiga 1000 from 1985) |
82a21c1890cae844b3df741f2762d48d | bios/kick34005.A500 | Kickstart v1.3 rev 34.005 | AmigaOS 1.3 (the OS bundled since 1987, more common) |
dc10d7bdd1b6f450773dfb558477c230 | bios/kick37175.A500 | Kickstart v2.04 rev 37.175 | AmigaOS 2.04 (the OS bundled since 1990) |
465646c9b6729f77eea5314d1f057951 | bios/kick37350.A600 | Kickstart v2.05 rev 37.350 | AmigaOS 2.05 (the OS bundled since 1992) |
e40a5dfb3d017ba8779faba30cbd1c8e | bios/kick40063.A600 | Kickstart v3.1 rev 40.063 | AmigaOS 3.1 |
85ad74194e87c08904327de1a9443b7a | bios/amiga-os-120.rom | Kickstart v1.2 rev 33.180 | AmigaOS 1.2 (the first OS bundled with the Amiga 1000 from 1985) |
82a21c1890cae844b3df741f2762d48d | bios/amiga-os-130.rom | Kickstart v1.3 rev 34.005 | AmigaOS 1.3 (the OS bundled since 1987, more common) |
dc10d7bdd1b6f450773dfb558477c230 | bios/amiga-os-204.rom | Kickstart v2.04 rev 37.175 | AmigaOS 2.04 (the OS bundled since 1990) |
465646c9b6729f77eea5314d1f057951 | bios/amiga-os-205.rom | Kickstart v2.05 rev 37.350 | AmigaOS 2.05 (the OS bundled since 1992) |
e40a5dfb3d017ba8779faba30cbd1c8e | bios/amiga-os-310-a600.rom | Kickstart v3.1 rev 40.063 | AmigaOS 3.1 (the OS bundled since 1993) |
The year of release of each OS version is an estimate.
ROMs
Place your Amiga 500 ROMs in /userdata/roms/amiga500
.
Multi-disk games
Do standard m3u playlists work?
If using a libretro core, it is possible to use a single archive to store multi-disk games. Put the multiple disks in a ZIP archive and add (MD)
to its filename. For example, the game Operation Wolf may exist as the following:
roms/amiga500/ ├─ Operation Wolf (Disk 1).adf └─ Operation Wolf (Disk 2).adf
Compress the two disk files into a single ZIP and add (MD)
to its filename:
roms/amiga500/ └─ Operation Wolf (MD).zip ├─ Operation Wolf (Disk 1).adf └─ Operation Wolf (Disk 2).adf
Multi-disc features can then be access from RetroArch's Quick Menu ([HOTKEY]
+ ). (
where exactly though?)
Emulators
fsuae
fsuae configuration
Standardized features available to all cores of this emulator: amiga500.videomode
, amiga500.ratio
, amiga500.padtokeyboard
amiberry
amiberry configuration
Standardized features available to all cores of this emulator: amiga500.videomode
, amiga500.ratio
, amiga500.padtokeyboard
RetroArch
RetroArch has its own page.
libretro: puae
libretro: puae configuration
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
---|---|
Settings that apply to all systems this core supports | |
AMIGA MODEL global.puae_model | Force a specific model and prevent tags detection ⇒ Autodetect (by game name tag) automatic , A500 (512KB Chip + 512KB Slow) A500 , A500+ (1MB Chip) A500PLUS , A600 (2MB Chip + 8MB Fast) A600 , A1200 (2MB Chip + 8MB Fast) A1200 , A4000/040 (2MB Chip + 8MB Fast) A4040 , CDTV (1MB Chip) CDTV , CD32 Default (2MB Chip) CD32 , CD32 (2MB Chip + 8MB Fast) CD32FR . |
CPU COMPATIBILITY global.cpu_compatibility | Help games which are too quick or that have bugs ⇒ Normal normal , More compatible compatible , Cycle-exact exact . |
CPU MULTIPLIER (OVERCLOCK) global.cpu_multiplier | Works with 'Cycle-exact' mode and for a few games ⇒ Default by model 0 , 3.54 MHz 1 , 7.09 MHz (A500 speed) 2 , 14.18 MHz (A1200 speed) 4 , 28.37 MHz 8 , 35.46 MHz 10 , 42.56 MHz 12 , 56.75 MHz 16 . |
CPU SPEED (OVERCLOCK) global.cpu_throttle | Ignored with 'Cycle-exact' ⇒ -90% -900.0 , -80% -800.0 , -70% -700.0 , -60% -600.0 , -50% -500.0 , -40% -400.0 , -30% -300.0 , -20% -200.0 , -10% -100.0 , Default 0.0 , +100% 1000.0 , +200% 2000.0 , +300% 3000.0 , +400% 4000.0 , +500% 5000.0 , +600% 6000.0 , +700% 7000.0 , +800% 8000.0 , +900% 9000.0 , +1000% 10000.0 . |
VIDEO STANDARD global.video_standard | Switch frequency and resolution by region ⇒ PAL 50Hz - 288/576px PAL , NTSC 60Hz - 240/480px NTSC . |
VIDEO RESOLUTION global.video_resolution | Increase the video resolution ⇒ Low 360p lores , High 720p hires , Super-high 1440p superhires . |
ZOOM MODE global.zoom_mode | Crops the borders to fit various host screens ⇒ Off none , Autofit screen automatic , minimum minimum , smaller smaller , small small , medium medium , large large , larger larger , maximum maximum . |
FRAMESKIP global.gfx_framerate | Skip frames to improve performance (smoothness) ⇒ Off disabled , 1 1 , 2 2 . |
MOUSE SPEED global.mouse_speed | Affects mouse speed globally. ⇒ original 100 , 50% 50 , 70% 70 , 120% 120 , 150% 150 , 170% 170 , 200% 200 . |
Settings specific to amiga500 | |
FLOPPY TURBO SPEED amiga500.puae_floppy_speed | Removes loading but can add possible glitches/crashes ⇒ Off 100 , On 0 . |
2P GAMEPAD MAPPING (KEYRAH) amiga500.keyrah_mapping | Keypad to joyport mappings for 2 players ⇒ Off disabled , On enabled . |
WHDLOAD LAUNCHER amiga500.whdload | Enable launching pre-installed WHDLoad installs ⇒ Off disabled , On config . |
JUMP ON B amiga500.pad_options | Makes second fire button press up ⇒ Off disabled , On jump . |
DISABLE EMULATOR JOYSTICK amiga500.disable_joystick | Passes all physical keyboard events for Pad2Key ⇒ Off disabled , On enabled . |
CONTROLLER 1 TYPE amiga500.controller1_puae | Select controller type for Amiga P1 ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
CONTROLLER 2 TYPE amiga500.controller2_puae | Select controller type for Amiga P2 ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
Settings specific to amiga1200 | |
FLOPPY TURBO SPEED amiga1200.puae_floppy_speed | Removes loading but can add possible glitches/crashes ⇒ Off 100 , On 0 . |
2P GAMEPAD MAPPING (KEYRAH) amiga1200.keyrah_mapping | Keypad to joyport mappings for 2 players ⇒ Off disabled , On enabled . |
WHDLOAD LAUNCHER amiga1200.whdload | Enable launching pre-installed WHDLoad installs ⇒ Off disabled , On config . |
JUMP ON B amiga1200.pad_options | Makes second fire button press up ⇒ Off disabled , On jump . |
DISABLE EMULATOR JOYSTICK amiga1200.disable_joystick | Passes all physical keyboard events for Pad2Key ⇒ Off disabled , On enabled . |
CONTROLLER 1 TYPE amiga1200.controller1_puae | Select controller type for Amiga P1 ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
CONTROLLER 2 TYPE amiga1200.controller2_puae | Select controller type for Amiga P2 ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
Settings specific to amigacd32 | |
BOOT ANIMATION FIRST amigacd32.puae_cd_startup_delayed_insert | Inserts CD during boot animation to prevent loading fail ⇒ Off disabled , On enabled . |
CD TURBO SPEED amigacd32.puae_cd_speed | Removes loading but can add possible glitches/crashes ⇒ Off 100 , On 0 . |
JUMP ON A amigacd32.puae_cd32pad_options | Makes Blue button press Up ⇒ Off disabled , On jump . |
Settings specific to amigacdtv | |
BOOT ANIMATION FIRST amigacdtv.puae_cd_startup_delayed_insert | Inserts CD during boot animation prevent loading fail ⇒ Off disabled , On enabled . |
CD TURBO SPEED amigacdtv.puae_cd_speed | Removes loading but can add possible glitches/crashes ⇒ Off 100 , On 0 . |
libretro: puae2021
An older version of PUAE which is more innaccurate but runs faster on weaker hardware (such as the Raspberry Pi).
libretro: puae2021 configuration
Standardized features for this core: amiga500.rewind
, amiga500.autosave
, amiga500.padtokeyboard
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
---|---|
Settings that apply to all systems this core supports | |
AMIGA MODEL global.puae_model | Force a specific model and prevent tags detection. ⇒ Autodetect (by game name tag) automatic , A500 (512KB Chip + 512KB Slow) A500 , A500+ (1MB Chip) A500PLUS , A600 (2MB Chip + 8MB Fast) A600 , A1200 (2MB Chip + 8MB Fast) A1200 , A4000/040 (2MB Chip + 8MB Fast) A4040 , CDTV (1MB Chip) CDTV , CD32 Default (2MB Chip) CD32 , CD32 (2MB Chip + 8MB Fast) CD32FR . |
CPU COMPATIBILITY global.cpu_compatibility | Help games which are too quick or that have bugs. ⇒ Normal normal , More compatible compatible , Cycle-exact exact . |
CPU CLOCK global.cpu_multiplier | Works with 'Cycle-exact' mode and for a few games. ⇒ Default by model 0 , 3.54 MHz 1 , 7.09 MHz (A500 speed) 2 , 14.18 MHz (A1200 speed) 4 , 28.37 MHz 8 , 35.46 MHz 10 , 42.56 MHz 12 , 56.75 MHz 16 . |
CPU SPEED global.cpu_throttle | Ignored with 'Cycle-exact'. ⇒ -90% -900.0 , -80% -800.0 , -70% -700.0 , -60% -600.0 , -50% -500.0 , -40% -400.0 , -30% -300.0 , -20% -200.0 , -10% -100.0 , Default 0.0 , +100% 1000.0 , +200% 2000.0 , +300% 3000.0 , +400% 4000.0 , +500% 5000.0 , +600% 6000.0 , +700% 7000.0 , +800% 8000.0 , +900% 9000.0 , +1000% 10000.0 . |
VIDEO FORMAT STANDARD global.video_standard | ⇒ PAL 288x576px 50Hz PAL , NTSC 240x480px 60Hz NTSC . |
VIDEO RESOLUTION global.video_resolution | Manually define which resolution to use.
Auto defaults to High and switches to Super-High when needed. ⇒ Low 360p lores , High 720p hires , Super-high 1440p superhires . |
ZOOM/CROP (HIDE BORDERS) global.zoom_mode | Hides borders on many games. Some games use the borders. ⇒ Off none , Auto zoom automatic , minimum minimum , smaller smaller , small small , medium medium , large large , larger larger , maximum maximum . |
FRAMESKIP global.gfx_framerate | Skip frames to improve performance, at the cost of choppy motion. ⇒ Off disabled , 1 1 , 2 2 . |
MOUSE SPEED global.mouse_speed | Affects mouse speed globally. ⇒ original 100 , 50% 50 , 70% 70 , 120% 120 , 150% 150 , 170% 170 , 200% 200 . |
JUMP ON B global.pad_options | Makes second fire button press up instead. ⇒ Off disabled , On jump . |
Settings specific to amiga500 | |
FLOPPY TURBO SPEED amiga500.puae_floppy_speed | Removes loading but can add possible glitches/crashes. ⇒ Off 100 , On 0 . |
2P GAMEPAD MAPPING (KEYRAH) amiga500.keyrah_mapping | Keypad to joyport mappings for 2 players. ⇒ Off disabled , On enabled . |
WHDLOAD LAUNCHER amiga500.whdload | Enable launching pre-installed WHDLoad installs. ⇒ Off disabled , On config . |
DISABLE EMULATOR JOYSTICK amiga500.disable_joystick | Passes all physical keyboard events for Pad2Key. ⇒ Off disabled , On enabled . |
CONTROLLER 1 TYPE amiga500.controller1_puae | Select controller type for Amiga P1. ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
CONTROLLER 2 TYPE amiga500.controller2_puae | Select controller type for Amiga P2. ⇒ Retropad 1 , CD32 Pad 517 , Analog Joystick 773 , Joystick 261 , Keyboard 259 . |
libretro: uae4arm
No configuration is available for this emulator (yet).
Controls
Here are the default Amiga OCS/ECS's controls shown on a Batocera Retropad:
If using libretro: PUAE, controls can be remapped per game or per folder by editing its core options.
Troubleshooting
Further troubleshooting
For further troubleshooting, refer to the generic support pages.
