This article needs some TLC. Read at your own risk.

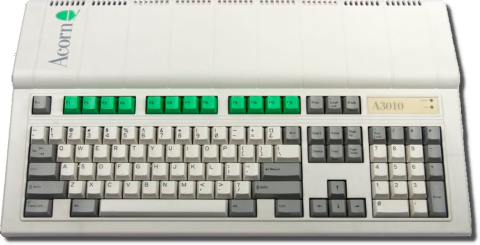

The Archimedes is a computer developed by Acorn Computers. It was released in 1987.

This system scrapes metadata for the “archimedes” group(s) and loads the archimedes set from the currently selected theme, if available.

  • Accepted ROM formats: .mfi, .dfi, .hfe, .mfm, .td0, .imd, .d77, .d88, .1dd, .cqm, .cqi, .dsk, .ima, .img, .ufi, .360, .ipf, .adf, .apd, .jfd, .ads, .adm, .adl, .ssd, .bbc, .dsd, .st, .msa, .chd, .zip, .7z
  • Folder: /userdata/roms/archimedes
libretro: mess
MD5 checksum Share file path Description
374e4bcaa04cb98aad3b64a1555c3930 bios/
b0b6a83029b6f85bb044bfc46bf3f0f6 bios/
bf35bb799aa0278b7ee7719dd32f26bc bios/
e41af081535aae930d68ee4cbd672513 bios/
7ecdccd760557ab0711edb37773faeb6 bios/
c43bad04862ea03146ff5bf7441a1a24 bios/
454c1977ad70a206f4f3a0bdca294d85 bios/
6850da7a70b198eaf6fde5be503fa5cd bios/
84d305e248dab48a3a110af161dfb005 bios/
64d7f085e6afb149ebc2e7f919429a19 bios/
f7d0a9a4d1dae8eee057aa626b87715f bios/
763b015d85c7d9d17e06d5babc0a9d32 bios/
b8fcd63c6a28d0c7034af2e6c5aff9a8 bios/
6265551c5d6336f7ddd9f3fc78ceba93 bios/
ca4379aeab4f7c7640c8ad34b27a9db6 bios/
358d3c9d2685c076f6a141c26d45520c bios/
4ae429fbf23f8aa64ce2002cfb14c527 bios/
83d0f0738468fdf9f23c13eef22dbeea bios/
636e4072c392916d2bf00865fee40984 bios/
252b1993fdb66cac522a0edbeffc3407 bios/
591f3bdd0f20a0a3d03c8748f2f75754 bios/
f77f4a409c78c8495fc3876cd4e7d97c bios/
57d3a349407916f55129d6c8c0f56395 bios/
ee4aa1ea0eebf88c5f6cae6315ed11a1 bios/
a057124502e533ccd8865dc970cf7017 bios/
3c40d2821595a7334a46ea3b46a5421d bios/
d1d51b8f603bba476d1f63bc5980040e bios/
7b096a93cc5ada80bcfb5249bca33768 bios/
744e80abe4c6a845412f63a0f0b14e48 bios/
9dac78cba6034c427d00f78fa94ab63d bios/
4c0b2e1fb29c8acd84e94d25c953173c bios/
f6bf5f8908a19a9aacf733633b1cd5cf bios/
eec46f5bd4cdb456b760b3cddf16a33c bios/
980e3be0c851a59d0f4602f4a94b2eef bios/
971a49d5c2dbb3fc01c17d1d5615781a bios/
9ce06a4d2a8331bc5b7fadb967d74f4f bios/
c74763f720c98e16dc3c6c421db21485 bios/
6f564c8917f04594bda7385f6de61061 bios/
232a302efe19278d9df6ecbc8ea3dc6c bios/
1a8617c1abe3e0729d20ce844e1e12a8 bios/

Place your Archimedes ROMs in /userdata/roms/archimedes.

Requires MAME BIOS files and Using software list mode is recommended. Double-click the floppy drive in the lower left to open the contents, double-click the app/game to run it.

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: archimedes.videomode, archimedes.videomode, archimedes.ratio, archimedes.shaderset, archimedes.smooth, archimedes.integerscale, archimedes.bezel, archimedes.bezel_stretch, archimedes.hud,, archimedes.bezel.tattoo_corner, archimedes.bezel.tattoo_file, archimedes.bezel.resize_tattoo, archimedes.ai_service_enabled, archimedes.ai_target_lang, archimedes.ai_service_url, archimedes.ai_service_pause, archimedes.runahead, archimedes.secondinstance, archimedes.video_frame_delay_auto, archimedes.vrr_runloop_enable, archimedes.video_threaded

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS API archimedes.gfxbackend Choose which graphics API library to use. Vulkan may not work for every core.
⇒ OpenGL gl, GLCore glcore, Vulkan vulkan.
AUDIO LATENCY archimedes.audio_latency In milliseconds. Can reduce crackling/cutting out.
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
ALLOW ROTATION archimedes.video_allow_rotate Allow cores to set rotation.
⇒ On true, Off false.
CONTROLLER TO LIGHTGUN archimedes.lightgun_map Map controller inputs to lightgun inputs
⇒ On true, Off false.

libretro: mess

libretro: mess configuration

Standardized features for this core: archimedes.autosave, archimedes.netplay, archimedes.padtokeyboard

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all systems this core supports
OVERCLOCK (UNSTABLE) global.mame_cpu_overclock Enhancement. Reduces system slowdown. Causes issues in some games.
⇒ default default, 30 30, 35 35, 40 40, 45 45, 50 50, 55 55, 60 60, 65 65, 70 70, 75 75, 80 80, 85 85, 90 90, 95 95, 100 100, 105 105, 110 110, 115 115, 120 120, 125 125, 130 130, 135 135, 140 140, 145 145, 150 150.
RENDERING RESOLUTION global.mame_altres Enhancement. Increase the rendering resolution. Makes 3D objects clearer.
⇒ 640×480 640×480, 800×600 800×600, 960×720 960×720, 1024×768 1024×768, 1280×720 1280×720, 1600×800 1600×800, 1920×1080 1920×1080, 2560×1440 2560×1440, 3840×2160 3840×2160.
SHARE MAME ARTWORK global.sharemameart Use the same art paths as standalone MAME - not recommended if using decorations or shaders.
⇒ On (Default) 1, Off 0.
CROP ARTWORK global.artworkcrop Crop MAME artwork to maximize the game screen and only fill unused space.
⇒ On (Default) 1, Off 0.
CUSTOM MAME CONFIG global.customcfg Set system-wide controls via MAME menu
⇒ On 1, Off 0.
ALT DPAD MODE global.altdpad If the D-Pad is oriented incorrectly for your controller.
⇒ Off (Default) 0, DS3 Orientation 1, X360 Orientation 2.
Settings specific to archimedes
SOFTWARE LIST archimedes.softList Use MAME software lists to identify ROM
⇒ Don't Use (Default) none, Acorn Archimedes floppy images archimedes, Acorn Archimedes hard disks archimedes_hdd, Acorn Archimedes ROM images archimedes_rom.
ARCHIMEDES MODEL archimedes.altmodel Select model to emulate
⇒ Archimedes 310 aa310, BBC A3000 aa3000, Archimedes 440/1 (Default) aa4401, Archimedes 540 aa540.
UI KEYS archimedes.enableui Toggle with hotkey + D-pad up or Scroll Lock in-game.
⇒ Off at Start 0, On at Start 1.
CUSTOM GAME CONFIG archimedes.pergamecfg Enable per-game custom configuration via MAME menu.
⇒ On 1, Off 0.

MAME, the Multiple Arcade Machine Emulator, is a multi-purpose emulation framework which facilitates the emulation of vintage hardware and software. Originally targeting vintage arcade machines, MAME has since absorbed the sister-project MESS (Multi Emulator Super System) to support a wide variety of vintage computers, video game consoles and calculators as well. MAME doesn't use an individual “core” for each system like RetroArch does, instead the ROM itself usually contains the necessary information to accurately emulate it, thus making it specific to the version of MAME it was made for. Overall it's a very complicated subject, we have a guide specific to arcade just for it.

MAME configuration

MAME offers a Menu in-game ([HOTKEY] + South button (B SNES) or [Tab] on the keyboard). This can be used to manually adjust inputs or game settings. If you're having issues with a specific game, check the MAMEdev FAQ for that game here. For MESS systems specifically, you might find more information on MESS's wiki. All options can also be edited by opening the mame.ini file.

Standardized features available to all versions of this emulator: archimedes.videomode, archimedes.padtokeyboard, archimedes.videomode, archimedes.bezel, archimedes.bezel_stretch, archimedes.hud,, archimedes.bezel.tattoo_corner, archimedes.bezel.tattoo_file, archimedes.bezel.resize_tattoo

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all versions of this emulator
VIDEO MODE BGFX for post-processing, accel/opengl for raw image.
⇒ BGFX bgfx, Accel accel, OpenGL opengl.
BGFX GRAPHICS API archimedes.bgfxbackend Depends on video mode being set to BGFX. Vulkan is better, when supported.
⇒ MAME Detect automatic, OpenGL opengl, OpenGL ES gles, Vulkan vulkan.
BGFX VIDEO FILTER archimedes.bgfxshaders Apply a post-processing effect.
⇒ Off None, Bilinear default, CRT Geom crt-geom, CRT Geom Deluxe crt-geom-deluxe, CRT Geom Deluxe (RGB) crt-geom-deluxe-rgb, CRT Geom Deluxe (Composite) crt-geom-deluxe-composite, Super Eagle eagle, HLSL hlsl, HQ2X hq2x, HQ3X hq3x, HQ4X hq4x.
CRT SWITCHRES archimedes.switchres Allows the use of switchres profiles if present.
⇒ Off 0, On 1.
VERTICAL ROTATION (TATE) archimedes.rotation Rotates screen by 90 degrees. Intended for rotating displays.
⇒ Off None, Rotate 90 autoror, Rotate 270 autorol.
ARTWORK CROP archimedes.artworkcrop Crop artwork to only unused space, keeping the game as large as possible.
⇒ Off (Default) 0, On 1.
ALT DPAD MODE archimedes.altdpad If the D-Pad is oriented incorrectly for your controller.
⇒ Off (Default) 0, DS3 Orientation 1, X360 Orientation 2.
CUSTOM MAME CONFIG archimedes.customcfg Set system-wide controls via MAME menu
⇒ On 1, Off 0.
DATA PLUGIN archimedes.dataplugin Make game history, setup instructions, and special moves viewable in the menu
⇒ Enabled 1, Disabled (Default) 0.

Here are the default Archimedes's controls shown on a Batocera RetroPad:

For further troubleshooting, refer to the generic support pages.
