Atari 800

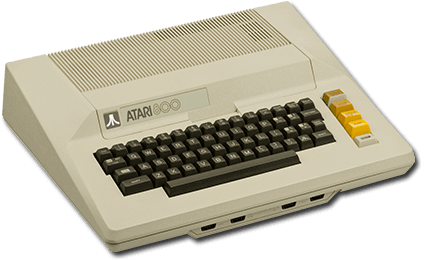

The Atari 800 is a line of computers developed by Atari. The first computers in the line, 400 and 800, were released in 1979.
The first two models, the 400 and 800, had the 16KB and 48KB of user-expandable RAM installed, while the later XL and XE models would have 64KB and 128KB installed, populating all the available slots.
The current emulation of the Atari 800 based family of computers is not complete or fail safe. This wiki article only gives basic instructions so you can run some popular games. The full technical background on these issues can be found in this article: Atari 8-Bit Guide (Raph Koster). The script mentioned in these pages is not integrated into Batocera yet, so you are stuck with the manual fixes until then.
This system scrapes metadata for the “atari800” group and loads the atari800 set from the currently selected theme, if available.
Quick reference
- Emulator: RetroArch
- Core: libretro: atari800
- Folder:
/userdata/roms/atari800 - Accepted ROM formats:
.rom,.xfd,.atr,.atx,.cdm,.cas,.car,.bin,.a52,.xex,.zip,.7z
BIOS
| MD5 checksum | Share file path | Description |
|---|---|---|
eb1f32f5d9f382db1bbfb8d7f9cb343a | bios/ATARIOSA.ROM | First version of the OS, only on some early units. |
a3e8d617c95d08031fe1b20d541434b2 | bios/ATARIOSB.ROM | Second revision of the OS, much more common. |
06daac977823773a3eea3422fd26a703 | bios/ATARIXL.ROM | Atari XL/XE extended ROM. |
0bac0c6a50104045d902df4503a4c30b | bios/ATARIBAS.ROM | Atari BASIC interpreter, a programming engine required by some games (but usually not). |
There are subtle differences in machine type between the different Atari Computers, including different version of the OS (BIOS). Some games will crash unless you manually select a different BIOS.
ROMs
Place your Atari 800 ROMs in /userdata/roms/atari800.
Multi-Disk games can only be used with an internal menu of the emulator. Playlists and RetroArch features for these games are not supported.
Emulators
RetroArch
RetroArch has its own page.
libretro: atari800
A libretro port of Atari800. Originally written by David Firth in 1995 and released under the GPL.
libretro: atari800 configuration
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
|---|---|
| Settings specific to atari800 | |
ATARI SYSTEM atari800.atari800_system | Choose what Atari System to emulate. ⇒ 400/600XL/800 (48K) (OS B) 400/800 (OS B), 800XL/1200XL/XEGS (64K) 800XL (64K), 130XE (128K) 130XE (128K), Modern XL/XE (320K CS) Modern XL/XE(320K CS), Modern XL/XE (576K) Modern XL/XE(576K), Modern XL/XE (1088K) Modern XL/XE(1088K). |
VIDEO FORMAT STANDARD atari800.atari800_ntscpal | Switch frequency and resolution by region. ⇒ NTSC 240x480px 60Hz NTSC, PAL 288x576px 50Hz PAL. |
SIO ACCELERATION atari800.atari800_sioaccel | Speeds up the virtual file loading. Some games won't load with this enabled. ⇒ Off disabled, On enabled. |
HI-RES ARTIFACTING atari800.atari800_artifacting | Emulate NTSC quirks to show more colors in hi-res mode. Most NTSC games took advantage of this quirk to show more than just two colors on the screen at once. Only very few PAL games were designed to only use two colors. ⇒ Off disabled, On enabled. |
INTERNAL RESOLUTION atari800.atari800_resolution | Use an alternate resolution. Some games need this. ⇒ 336×240 336×240, 320×240 320×240, 384×240 384×240, 384×272 384×272, 384×288 384×288, 400×300 400×300. |
| Settings specific to atari5200 | |
JOYSTICK HACK (FOR ROBOTRON 2084) atari5200.atari800_opt2 | Treats the right analog stick as the second joystick. ⇒ Off disabled, On enabled. |
Controls
Analogue joysticks are supported only via hard-coded mouse inputs (bypassing RetroPad and default controls). The analog sticks of gamepads are NOT supported. This makes some games unplayable unless you connect a mouse.
Sure that it's not possible to remap them?
Here are the default Atari 800's controls shown on a Batocera Retropad:
Troubleshooting
My game is black and white!
Many (US) games look wrong because they use specific video artifacts to generate colors on NTSC TVs but look black and white in emulation, unless you set specific parameters.
What parameters?
Game is not booting
Most ROM sets are in a format that requires one additional input at the start of a ROM. Sometimes the selection screen is not visible making it look like the emulator crashed.
So what buttons are common to try to get out of this?
Further troubleshooting
For further troubleshooting, refer to the generic support pages.
