CD-i

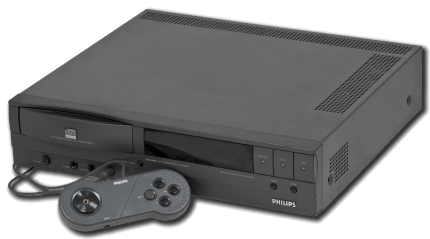

The Compact Disc Interactive (CD-i) is an interactive multimedia console and format standard developed in a joint effort by Philips, Sony and Magnavox. It was released in 1990.

Because it was more a standard than just a console, it was possible for multiple manufacturers to make their own version of “CD-i” player, such as integrating a player into a television set itself, expansion modules for certain computers, or just reboxings with different brandings.

Unlike the traditional CD-ROM players of the time, CD-i required a dedicated Motorola 68000-based CPU to run its own operating system called Compact Disc - Real Time Operating System (CD-RTOS).

Although many types of media were produced for the CD-i, it is most well known for its less-than-scrupulous video games. Such as the infamous "we can't call these games The Legend of X" incident.

Here's an interesting blog centered around the CD-i, "The World of CD-i".

This system scrapes metadata for the “cdi” group(s) and loads the cdi set from the currently selected theme, if available.

  • Emulator: MAME
  • Folder: /userdata/roms/cdi
  • Accepted ROM formats: .chd, .cue, .toc, .nrg, .gdi, .iso, .cdr

Requires MAME BIOS file cdimono1.zip or .7z in either the roms/cdi or BIOS folder.

MD5: 3d20cf7550f1b723158b42a1fd5bac62

Place your CD-i ROMs in /userdata/roms/cdi.

MAME, the Multiple Arcade Machine Emulator, is a multi-purpose emulation framework which facilitates the emulation of vintage hardware and software. Originally targeting vintage arcade machines, MAME has since absorbed the sister-project MESS (Multi Emulator Super System) to support a wide variety of vintage computers, video game consoles and calculators as well. MAME doesn't use an individual “core” for each system like RetroArch does, instead the ROM itself usually contains the necessary information to accurately emulate it, thus making it specific to the version of MAME it was made for. Overall it's a very complicated subject, we have a guide specific to arcade just for it.

MAME configuration

MAME offers a Menu in-game ([HOTKEY] + South button (B SNES) or [Tab] on the keyboard). This can be used to manually adjust inputs or game settings. If you're having issues with a specific game, check the MAMEdev FAQ for that game here. For MESS systems specifically, you might find more information on MESS's wiki. All options can also be edited by opening the mame.ini file.

Standardized features available to all versions of this emulator: cdi.videomode, cdi.decoration, cdi.padtokeyboard

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all versions of this emulator
VIDEO MODE cdi.video BGFX for post-processing, accel/opengl for raw image.
⇒ BGFX bgfx, Accel accel, OpenGL opengl.
BGFX GRAPHICS API cdi.bgfxbackend Depends on video mode being set to BGFX. Vulkan is better, when supported.
⇒ MAME Detect automatic, OpenGL opengl, OpenGL ES gles, Vulkan vulkan.
BGFX VIDEO FILTER cdi.bgfxshaders Apply a post-processing effect.
⇒ Off None, Bilinear default, CRT Geom crt-geom, CRT Geom Deluxe crt-geom-deluxe, Super Eagle eagle, HLSL hlsl, HQ2X hq2x, HQ3X hq3x, HQ4X hq4x.
CRT SWITCHRES cdi.switchres Allows the use of switchres profiles if present.
⇒ Off 0, On 1.
VERTICAL ROTATION (TATE) cdi.rotation Rotates screen by 90 degrees. Intended for rotating displays.
⇒ Off None, Rotate 90 autoror, Rotate 270 autorol.
ALT DPAD MODE cdi.altdpad If the D-Pad is oriented incorrectly for your controller.
⇒ Off (Default) 0, DS3 Orientation 1, X360 Orientation 2.

Here are the default CD-i's controls shown on a Batocera Retropad:

For problems with MAME specifically, there are some tips on the troubleshooting section on MAME's system page.

For further troubleshooting, refer to the generic support pages.
