CreatiVision

The CreatiVision is a hybrid computer/videogame console developed by VTech. It was first released in 1982.

The CreatiVision had many different names and was published by different brands across the globe. You may have known it as:

  • VTech CreatiVision
  • VTech Laser 2001 Home Computer
  • Educat 2002
  • Dick Smith Wizzard
  • FunVision Comp Video Games System
  • Hanimex Rameses
  • VZ 2000
  • Zanussi CreatiVision
  • Bente CreatiVision
  • Cheryco CreatiVision
  • Salora Laser 2001
  • Telefunken CreatiVision

This system scrapes metadata for the “crvision” group and loads the crvision set from the currently selected theme, if available.

Quick reference

  • Emulator: MAME
  • Folder: /userdata/roms/crvision
  • Accepted ROM formats: .bin, .rom, .zip, .7z

BIOS

Requires MAME BIOS file crvision.zip or .7z in either crvision or the BIOS folder.

ROMs

Place your CreatiVision ROMs in /userdata/roms/crvision.

Emulators

MAME

MAME, the Multiple Arcade Machine Emulator, is a multi-purpose emulation framework which facilitates the emulation of vintage hardware and software. Originally targeting vintage arcade machines, MAME has since absorbed the sister-project MESS (Multi Emulator Super System) to support a wide variety of vintage computers, video game consoles and calculators as well. MAME doesn't use an individual “core” for each system like RetroArch does, instead the ROM itself usually contains the necessary information to accurately emulate it, thus making it specific to the version of MAME it was made for. Overall it's a very complicated subject, we have a guide specific to arcade just for it.

MAME configuration

MAME offers a Menu in-game ([HOTKEY] + South button (B SNES) or [Tab] on the keyboard). This can be used to manually adjust inputs or game settings. If you're having issues with a specific game, check the MAMEdev FAQ for that game here. For MESS systems specifically, you might find more information on MESS's wiki. All options can also be edited by opening the mame.ini file.

Standardized features available to all versions of this emulator: crvision.videomode, crvision.decoration, crvision.padtokeyboard

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all versions of this emulator
GRAPHICS BACKEND crvision.video Choose your graphics rendering
⇒ BGFX bgfx, Accel accel, OpenGL opengl.
BGFX BACKEND crvision.bgfxbackend Choose your graphics API
⇒ MAME Detect automatic, OpenGL opengl, OpenGL ES gles, Vulkan vulkan.
BGFX VIDEO FILTER crvision.bgfxshaders Apply a particular visual effect
⇒ Off None, Bilinear default, CRT Geom crt-geom, CRT Geom Deluxe crt-geom-deluxe, Super Eagle eagle, HLSL hlsl, HQ2X hq2x, HQ3X hq3x, HQ4X hq4x.
CRT SWITCHRES crvision.switchres CRT monitor SwitchRes support
⇒ Off 0, On 1.
TATE MODE crvision.rotation Rotating display to vertical mode rendering
⇒ Off None, Rotate 90 autoror, Rotate 270 autorol.
ALT DPAD MODE crvision.altdpad If the D-Pad does not work properly
⇒ Off (Default) 0, DS3 Orientation 1, X360 Orientation 2.
Settings specific to crvision
MEDIA TYPE crvision.altromtype Type of ROM file (Cartridge default)
⇒ Cartridge cart, Cassette cass.
CUSTOM CONFIG crvision.pergamecfg Enable per-game custom configuration via MAME menu
⇒ On 1, Off 0.

Controls

An example overlay, for Air-Sea Attack.

The controls for the CreatiVision are one of the most unique both in design and conceptualization. Instead of using a single controller layout and having games adapt to it, the game would come with a decorative overlay that you would slot into the rails of the controller, covering the membrane buttons. The layout would be unique to that game.

Generally, most games opted to use the top-most and bottom-most buttons for their primary functions, but some others used the sides as well. Batocera assumes a default control scheme that makes most games playable, but you are encouraged to remap them as needed on a per-game basis. Most games' overlays can be found at creatiVemu's software database.

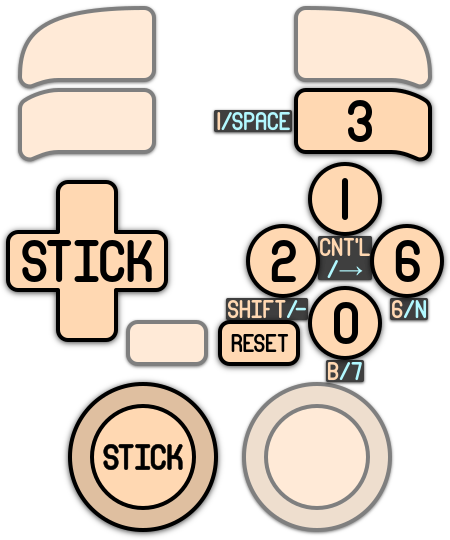

Here are the default CreatiVision's controls shown on a Batocera Retropad:

Remember, this was also a computer, so it uses a non-standard computer keyboard layout underneath. When both controllers are docked in the horizontal position in the console, it resembles the QWERTY keyboard layout. That's why the button labels internally used might be a bit confusing when using it in its game mode.

Troubleshooting

Further troubleshooting

For problems with MAME specifically, there are some tips on the troubleshooting section on MAME's system page.

For further troubleshooting, refer to the generic support pages.
