Nintendo Game Boy Advance

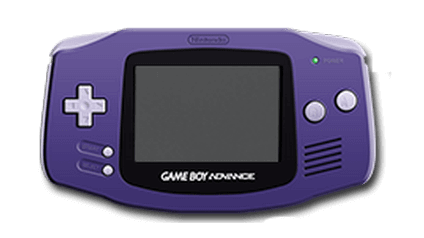

The Game Boy Advance (often shortened to GBA) is a 32-bit handheld video game console developed by Nintendo. It is the successor to the Game Boy Color. It was released in Japan on March 21, 2001; in North America on June 11, 2001; in Australia and Europe on June 22, 2001. It has a ARM7TDMI CPU at 16.78 MHz and a Zilog Z80 CPU at 8 MHz and 4 MHz. It has 32KB of RAM and 96KB of VRAM.
This system scrapes metadata for the “gba” group and loads the gba set from the currently selected theme, if available.
Quick reference
- Emulator: RetroArch
- Folder:
/userdata/roms/gba - Accepted ROM formats:
.gba,.zip,.7z
BIOS
The BIOS file are optional for GBA emulation, however it is the only way to see the cool boot animation on start-up.
| MD5 checksum | Share file path | Description |
|---|---|---|
a860e8c0b6d573d191e4ec7db1b1e4f6 | bios/gba_bios.bin | Game Boy Advance BIOS |
ROMs
Place your Game Boy Advance ROMs in /userdata/roms/gba.
Emulators
RetroArch
RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.
RetroArch configuration
RetroArch offers a Quick Menu accessed by pressing [HOTKEY] +
which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.
Standardized features available to all libretro cores: gba.videomode, gba.ratio, gba.smooth, gba.shaders, gba.pixel_perfect, gba.decoration, gba.game_translation
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
|---|---|
| Settings that apply to all cores of this emulator | |
GRAPHICS API gba.gfxbackend | Choose which graphics API library to use. Vulkan is better, when supported. ⇒ OpenGL opengl, Vulkan vulkan. |
AUDIO LATENCY gba.audio_latency | Audio latency in milliseconds, turn it up if you hear crackles ⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8. |
THREADED VIDEO gba.video_threaded | Improves performance at the cost of latency and more video stuttering. Use only if full speed cannot be obtained otherwise. ⇒ On true, Off false. |
libretro: mGBA
mGBA is an emulator for running Game Boy Advance games. It aims to be faster and more accurate than many existing Game Boy Advance emulators, as well as adding features that other emulators lack. It also supports Game Boy and Game Boy Color games.
We use the latest libretro core. See the official documentation for more information.
libretro: mGBA configuration
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
|---|---|
| Settings that apply to all systems this core supports | |
SHOW BIOS BOOTLOGO global.skip_bios_mgba | Show BIOS animation when starting content. Requires BIOS file to be present. ⇒ Off True, On False. |
| Settings specific to gb | |
SUPER GB BORDERS gb.sgb_borders | Only for Super Game Boy enhanced games. ⇒ Off False, On True. |
COLOR CORRECTION gb.color_correction | Simulate LCD color inaccuracy. More accurate to how the game would have appeared on the real hardware. ⇒ Off False, On GBA. |
| Settings specific to gbc | |
SUPER GB BORDERS gbc.sgb_borders | Only for Super Game Boy enhanced games. ⇒ Off False, On True. |
COLOR CORRECTION gbc.color_correction | Simulate LCD color inaccuracy. More accurate to how the game would have appeared on the real hardware. ⇒ Off False, On GBC. |
| Settings specific to gba | |
SOLAR SENSOR LEVEL gba.solar_sensor_level | Can be used by games that employed the use of a solar sensor on their cartridges. Use it for the few solar sensor games available, namely the Boktai series. ⇒ 0 0, 1 1, 2 2, 3 3, 4 4, 5 5, 6 6, 7 7, 8 8, 9 9, 10 10. |
FRAMESKIP gba.frameskip_mgba | Skip frames to improve performance (smoothness) ⇒ 0 0, 1 1, 2 2, 3 3, 4 4, 5 5, 6 6, 7 7, 8 8, 9 9, 10 10. |
libretro: VBA-M
VBA-M is a Game Boy Advance emulator with the goal to improve upon VisualBoyAdvance by integrating the best features from the various builds floating around. It also supports Game Boy, Game Boy Color and Super Game Boy (borders, palette).
libretro: VBA-M configuration
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
|---|---|
| Settings specific to gb | |
COLORIZATION gb.palettes | Set the Game Boy palettes to use ⇒ original gameboy original gameboy, black and white black and white, gba sp gba sp, blue sea blue sea, dark knight dark knight, green forest green forest, hot desert hot desert, pink dreams pink dreams, weird colors weird colors. |
COLOR CORRECTION gb.gbcoloroption_gb | Simulate LCD color inaccuracy. More accurate to how the game would have appeared on the real hardware. ⇒ Off disabled, On enabled. |
SUPER GB BORDERS gb.showborders_gb | Only for Super Game Boy enhanced games. ⇒ Off disabled, On enabled. |
| Settings specific to gbc | |
COLOR CORRECTION gbc.gbcoloroption_gbc | Simulate LCD color inaccuracy. More accurate to how the game would have appeared on the real hardware. ⇒ Off disabled, On enabled. |
SUPER GB BORDERS gbc.showborders_gbc | Only for Super Game Boy enhanced games. ⇒ Off disabled, On enabled. |
| Settings specific to gba | |
SOLAR SENSOR LEVEL gba.solarsensor | Can be used by games that employed the use of a solar sensor on their cartridges. Use it for the few solar sensor games available, namely the Boktai series. ⇒ 0 0, 1 1, 2 2, 3 3, 4 4, 5 5, 6 6, 7 7, 8 8, 9 9, 10 10. |
SENSOR SENSITIVITY (GYROSCOPE) gba.gyro_sensitivity | For Gyro-enabled games (bound to left analog stick) ⇒ 10 10, 15 15, 20 20, 25 25, 30 30, 35 35, 40 40, 45 45, 50 50, 55 55, 60 60, 65 65, 70 70, 75 75, 80 80, 85 85, 90 90, 95 95, 100 100, 105 105, 110 110, 115 115, 120 120. |
SENSOR SENSITIVITY (TILT) gba.tilt_sensitivity | For Gyro-enabled games (bound to right analog stick) ⇒ 10 10, 15 15, 20 20, 25 25, 30 30, 35 35, 40 40, 45 45, 50 50, 55 55, 60 60, 65 65, 70 70, 75 75, 80 80, 85 85, 90 90, 95 95, 100 100, 105 105, 110 110, 115 115, 120 120. |
libretro: gpsp
libretro: gpsp configuration
Controls

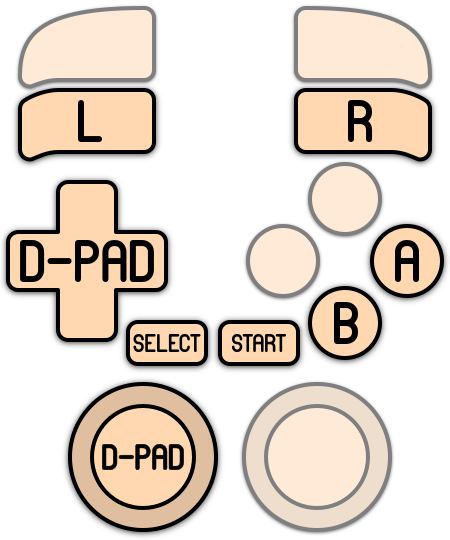

Here are the default Game Boy Advance's controls shown on a Batocera Retropad:
Troubleshooting
Further troubleshooting
For further troubleshooting, refer to the generic support pages.
