Nintendo Game Boy Color (2 Players)

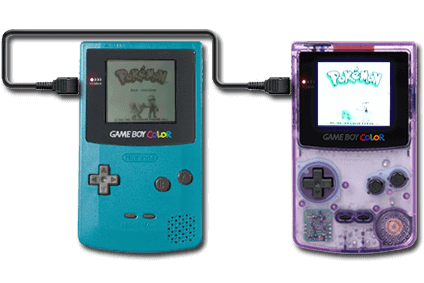

The link cable for the Game Boy allows two people to play two-player games. The requirement is that both players insert a Game Pak into their Game Boy, and the Game Pak must feature a two-player mode (the packaging of these games is marked with the appropriate symbol). The link cable is connected to the left side of Game Boy through the sockets specially provided for this, as illustrated on the right.

This system scrapes metadata for the “gbc” group(s) and loads the gbc2players set from the currently selected theme, if available.

  • Emulator: RetroArch
  • Folder: /userdata/roms/gbc2players
  • Accepted ROM formats: .gbc, .gb2, .gbc2, .zip, .7z

No Game Boy Color (2 players) emulator in Batocera needs a BIOS file to run.

Check the list of multiplayer Game Boy games to find compatible games first!

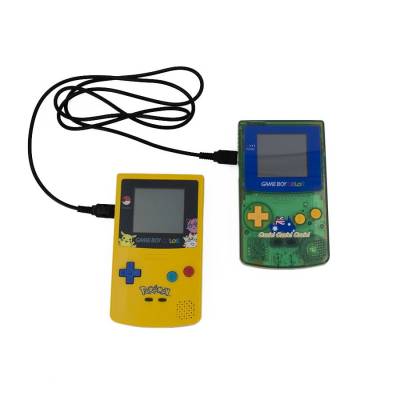

Two Game Boy Colors connected via the link cable.

ROMs can ordinarily be put into the roms/gbc2players/ folder. This will use a single ROM for both players in the linked game instances (Player 1's saves are stored in saves/gbc2player). Player 2 will use a temporary blank save file that is removed when the session ends. Great for PVP games that don't rely on user save files such as Mario Tennis or Tetris DX.

This is the only available way to use GBC2Player on Batocera v31 and lower.

You can copy over your save file from saves/gbc/ to saves/gbc2player/ to continue from where you left off in single player! Alternatively, you can turn on SYNC SAVE FILES to do this automatically.

If instead you'd like to use two different ROMs, read the section on it below.

Alternative title: POKEMON, YEAH! POKEMON TIME CAPSULE! POKEMON TRADING! POKEMON BATTLING! AAAAAAAAAAAAAAAAAAAAAAAAAAAAAA POKEMON!!!

In Batocera v32 and higher, it is possible to use two different ROMs instead.

  1. Copy your Game Boy/Game Boy Color ROMs to their respective solo ROM directory, ie. roms/gb and roms/gbc respectively. For example:
    roms/
    ├─ gb/
    │  └─ Pokemon Yellow.zip
    └─ gbc/
       └─ Pokemon Crystal.zip
  2. Create a new text file named <game 1 title> and <game 2 title>.gb2 containing the filenames of the games you intend to link play with prepended with gb: or gbc: depending on which folder they're stored in. For example:
    Pokemon Yellow and Pokemon Crystal.gb2
    gb:Pokemon Yellow.zip
    gbc:Pokemon Crystal.zip

    Most Game Boy games could be played on the Game Boy Color, but not all of them.

    Libretro/TGB Dual doesn't care, and will run either game with its appropriate system. Check first before attempting this, so you aren't surprised when your Game Boy game isn't running in Color mode.

  3. Save this text file to the roms/gbc2player/ directory. For example:
    roms/
    ├─ gb/
    │  └─ Pokemon Yellow.zip
    ├─ gbc/
    │  └─ Pokemon Crystal.zip
    └─ gbc2players/
       └─ Pokemon Yellow and Pokemon Crystal.gb2
  4. Update your game list and now your game will appear in the GBC2Player system!

By default, the save files are grabbed from saves/gbc2players/<game name for player 1>.srm and saves/gbc2players/<game name for player 2>.srm for the different games respectively. This can be used for a quick and dirty way to say trade Pokemon between generations.

But what if you wanted this to all be automated?

In Batocera v32 and higher, it is possible to use two different ROMs from their single-player Game Boy and/or Game Boy Color systems with their respective single-player save file locations instead. This utilizes Python scripts to automate the copying/overwriting process between saves/gbc2players/ and saves/gb and/or saves/gbc.

You should create a backup of your GBC2Player save files before attempting this, as they will otherwise be overwritten.

  1. Set up your unique ROMs as detailed above.
  2. On the GBC2Player game list, press [SELECT] to bring up the system-specific options and navigate to ADVANCED SYSTEM OPTIONS.
  3. Scroll down to SYNC SAVE FILES and set this to “ON”.

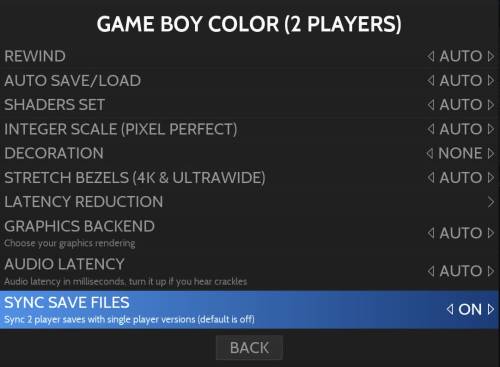

Instructions to get to this menu above. Never forget about your saves again!

When launching a game through the GBC2Player system, the SRM save files for both the ROMs will be temporarily copied from their respective saves/gb/ and/or saves/gbc/ folder(s) to saves/gbc2player/ (overwriting any files currently there). Upon exiting the game, the saves will be copied back from saves/gbc2player to their respective saves/gb/ and/or saves/gbc/ folder(s).

Save states are not copied, only SRM native save files.

There is currently no automated save file syncing via Netplay. You could use an external method to sync up the save files and do this, however.

In case any of that was confusing here's a professional grade flowchart visualizing what happens based on what configuration/source ROMs are used:

Flowchart of all four possible outcomes.

If you use a .gb2 playlist that calls the same ROM twice, the file that's ultimately saved will be from Player 2!

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: gbc2players.videomode, gbc2players.ratio, gbc2players.smooth, gbc2players.shaders, gbc2players.pixel_perfect, gbc2players.decoration, gbc2players.game_translation

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS BACKEND gbc2players.gfxbackend Choose your graphics rendering
⇒ OpenGL opengl, Vulkan vulkan.
AUDIO LATENCY gbc2players.audio_latency Audio latency in milliseconds, turn it up if you hear crackles
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
THREADED VIDEO gbc2players.video_threaded Improves performance at the cost of latency and more video stuttering. Use only if full speed cannot be obtained otherwise.
⇒ On true, Off false.

libretro: TGBDual

TGB Dual is an open source (GPLv2) GB/GBC emulator with game link cable support.

We use the latest libretro core. See the official documentation for more information.

libretro: TGBDual configuration
ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all systems this core supports
SYNC SAVE FILES global.sync_saves Sync 2 player saves with single player versions (default is off)
⇒ On 1, Off 0.

Here are the default Game Boy Color (2 players)'s controls shown on a Batocera Retropad:

For further troubleshooting, refer to the generic support pages.
