SNK Neo Geo Pocket

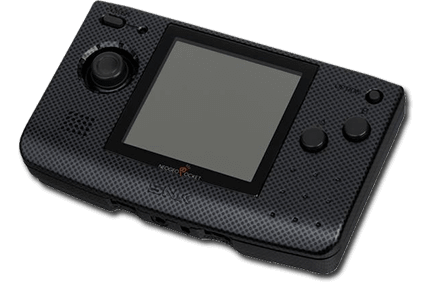

The Neo Geo Pocket is a monochrome handheld game console released by SNK. It was the company's first handheld system and is part of the Neo Geo family. It debuted in Japan in late 1998 but never saw an American release, being exclusive to Japan, Asia and Europe.

This system scrapes metadata for the “ngp” group and loads the ngp set from the currently selected theme, if available.

No Neo-Geo Pocket emulator in Batocera needs a BIOS file to run.

Place your Neo-Geo Pocket ROMs in /userdata/roms/ngp.

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: ngp.videomode, ngp.ratio, ngp.smooth, ngp.shaders, ngp.pixel_perfect, ngp.decoration, ngp.game_translation

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS BACKEND ngp.gfxbackend Choose your graphics rendering
⇒ OpenGL opengl, Vulkan vulkan.
AUDIO LATENCY ngp.audio_latency Audio latency in milliseconds, turn it up if you hear crackles
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
THREADED VIDEO ngp.video_threaded Improves performance at the cost of latency and more video stuttering. Use only if full speed cannot be obtained otherwise.
⇒ On true, Off false.

libretro: Mednafen_ngp

Batocera uses the standalone port Beetle NeoPop based on Mednafen. Mednafen's Neo Geo Pocket emulation is based on NeoPop.

libretro: Mednafen_ngp configuration

Here are the default Neo-Geo Pocket's controls shown on a Batocera Retropad:

The default button mapping to the Neo Geo Pocket is as following:

For further troubleshooting, refer to the generic support pages.
