Raze

Raze is a fork of Build engine games backed by GZDoom tech and combines Duke Nukem 3D, Blood, Redneck Rampage, Shadow Warrior and Exhumed/Powerslave in a single package. It is also capable of playing Nam and WW2 GI.

“Another day another corpse.” Caleb from Blood.

This system scrapes metadata for the “ports” group(s) and loads the raze set from the currently selected theme, if available.

Grouped with the “ports” group of systems.

SHadow Warrior Blood Redneck Rampage

Quick reference

  • Emulator: Raze
  • Folder: roms/raze/
  • Accepted ROM formats: .raze

BIOS

No Raze emulator in Batocera needs a BIOS file to run.

ROMs

Place your Raze ROMs in /userdata/roms/raze/.

Each game needs a .raze file to tell Raze how to launch the game, the file need to point to the main game file and add-on file (it's case sensitive and can't have empty lines, otherwiser files will not be found or game will not start, for CON files do not add the full path but relative to the main file).

eg.:

/userdata/roms/raze/Cryptic Passage.raze (make it easy to scrapper)

/userdata/roms/raze/blood/BLOOD.RFF (main game data)

/userdata/roms/raze/blood/cryptic.zip (add-on data)

/userdate/roms/raze/blood/music/blood02.ogg to blood09.ogg (music data - expects to find it in the same directory as the game's main files or in a /music/ sub-folder of it - music files named track02.ogg, track03.ogg, etc are supported but are deprecated, prefer to use the game name instead)

Music files

  • Blood: blood02.ogg to blood09.ogg
  • Exhumed: exhumed02.ogg to exhumed19.ogg
  • Redneck Rampage/Route 66: redneck02.ogg to redneck09.ogg
  • Redneck Rampage: Rides Again: rednecksides02.ogg to redneckrides09.ogg
  • Shadow Warrior: shadow02.ogg to shadow14.ogg

Supported games (.raze file content and data files location)

One Unit Whole Blood (via NBlood)

One Unit Whole Blood.raze
FILE = /blood/BLOOD.RFF

Files from game folder /Blood and Blood/movies.

/userdata/roms/raze/
               ├─ blood/
               │  ├─ music/
               │  │  └─ blood2.ogg to blood9.ogg (or track02.ogg to track09.ogg) (optional)
               │  ├─ BLOOD.INI
               │  ├─ BLOOD.RFF
               │  ├─ GUI.RFF
               │  ├─ SOUNDS.RFF
               │  ├─ SURFACE.DAT
               │  ├─ TILES000.ART to TILES017.ART
               │  └─ VOXEL.DAT
               └─ One Unit Whole Blood.raze

Blood: Cryptic Passage (expansion)

Cryptic Passage for Blood.raze
FILE  = /blood/BLOOD.RFF
FILE+ = /blood/cryptic.zip

Files from game folder /Blood and Blood/movies.

/userdata/roms/raze/
               ├─ blood/
               │  └─ cryptic.zip
               |     ├─ CP01.MAP TO CP09.MAP
               |     ├─ CPART07.AR_
               |     ├─ CPART15.AR_
               |     ├─ CPBB01.MAP TO CPBB04.MAP
               |     ├─ CSPL.MAP
               |     ├─ CRYPTIC.INI
               |     ├─ CRYPTIC.SMK
               |     └─ CRYPTIC.WAV
               └─ Cryptic Passage for Blood.raze

Blood: Death Wish (expansion)

Death Wish.raze
FILE  = /blood/BLOOD.RFF
FILE+ = /blood/deathwish.zip

Files from game folder Death Wish, Death Wish/movies.

/userdata/roms/raze/
               └─ blood/
                  ├─ deathwish.zip/
                  │  ├─ DEATHWISH.INI (rename it from DW.INI)
                  │  ├─ CPART07.AR_
                  │  ├─ DW1A.OGV to DW3B.OGV
                  │  ├─ DW1A.SMK to DW3B.SMK
                  │  └─ DW*.MAP (39 files)
                  └─ Death Wish.RAZE

Blood: Plasma Pak (expansion)

Plasma Pak.raze
FILE  = /blood/BLOOD.RFF
FILE+ = /blood/plasma.zip

Files from game folder /Blood and Blood/movies (FIXME the files shown in plasma.zip are duplicated from cryptic.zip above, replace with correct list).

/userdata/roms/raze/
               ├─ blood/
               │  └─ plasma.zip
               |     ├─ CP01.MAP TO CP09.MAP
               |     ├─ CPART07.AR_
               |     ├─ CPART15.AR_
               |     ├─ CPBB01.MAP TO CPBB04.MAP
               |     ├─ CSPL.MAP
               |     ├─ CRYPTIC.INI
               |     ├─ CRYPTIC.SMK
               |     └─ CRYPTIC.WAV
               └─ Plasma Pak.raze

Duke Nukem 3D v1.3D, Atomic Edition, and Twentieth Anniversary World Tour (via JFDuke & EDuke 2.0; World Tour extensions via DukeGDX)

Duke Nukem 3D.raze
FILE = /duke/DUKE3D.GRP

Files from game folder /Duke Nukem 3D or /ATOMINST or /Duke Nukem 3D/gameroot or Duke Nukem 3D Twentieth Anniversary World Tour/ or /data

/userdata/roms/raze/
               ├─ duke/
               |  └─ DUKE3D.GRP (The World Tour's extra features will requires the whole game installation)
               └─ Duke Nukem 3D.raze

Note: For Duke Nukem games you can install High-Definition Packs and Music Packs: http://hrp.duke4.net/download.php Some files have versions for Raze emulator and others for Raze emulator, make sure to download the correct one.

Duke It Out in D.C.

Duke It Out in D.C..raze
FILE  = /duke/DUKE3D.GRP
FILE+ = /duke/DUKEDC.GRP

Files from game folder /Duke Nukem 3D and /Duke Nukem 3D/gameroot/addons/dc

/userdata/roms/raze/
               ├─ duke/
               |  ├─ DUKE3D.GRP
               |  └─ DUKEDC.GRP
               └─ Duke It Out in D.C..raze

Duke Caribbean: Life's a Beach (expansion)

Duke Caribbean - Life's a Beach.raze
FILE  = /duke/DUKE3D.GRP
FILE+ = /duke/VACATION.GRP

Files from game folder /Duke Nukem 3D and /Duke Nukem 3D/gameroot/addons/vacation/

/userdata/roms/raze/
               ├─ duke/
               │  ├─ DUKE3D.GRP
               │  └─ VACATION.GRP (Duke Caribbean: Life's a Beach)
               └─ Duke Caribbean - Life's a Beach.raze

Duke: Nuclear Winter (expansion)

Duke - Nuclear Winter.raze
FILE  = /duke/DUKE3D.GRP
FILE+ = /duke/NWINTER.GRP

Files from game folder /Duke Nukem 3D and /Duke Nukem 3D/gameroot/addons/nw/

/userdata/roms/raze/
               ├─ duke/
               │  ├─ DUKE3D.GRP
               │  └─ NWINTER.GRP
               └─ Duke - Nuclear Winter.raze

Duke!Zone II

for Atomic Edition

Duke!Zone II.raze
FILE  = /duke/DUKE!ZON.GRP
FILE+ = /duke/DUKEZONE2.GRPINFO

for World Tour Edition

Duke!Zone II.raze

FILE  = /duke/DUKE!ZON.GRP
FILE+ = /duke/DUKEZONE2_WT.GRPINFO

Files from game folder Duke Zone 2

Files for “CON” and “MHK” can apparently be “fixed” at https://hrp.duke4.net/download.php

This needs explanation.

/userdata/roms/raze/
               ├─ dukezone2/
               |  ├─ DUKE!ZON.GRP
               |  ├─ DUKEZONE2.GRPINFO (Atomic) OR DUKEZONE2_WT.GRPINFO (World Tour)
               |  ├─ GAME.CON
               |  ├─ DEFS.CON
               |  ├─ USER.CON
               |  └─ E3L1.MHK
               └─ Duke!Zone II.raze

Exhumed/PowerSlave (via PCExhumed, with various enhancements inspired by PowerslaveGDX)

Exhumed.raze
FILE = /exhumed/STUFF.DAT

Files from game folder /Exhumed

/userdata/roms/raze/
               ├─ exhumed/
               |  ├─ music/
               |  |  └─ exhumed02 to exhumed19.ogg (or track02.ogg to track19.ogg)
               |  ├─ BOOK.MOV
               |  └─ STUFF.DAT
               └─ Exhumed.raze
Powerslave.raze
FILE = /pwrslave/STUFF.DAT

Files from game folder /PWRSLAVE

/userdata/roms/raze/
               ├─ pwrslave/
               |  ├─ music/
               |  |  └─ exhumed02 to exhumed19.ogg (or track02.ogg to track19.ogg)
               |  ├─ BOOK.MOV
               |  └─ STUFF.DAT
               └─ Powerslave.raze

NAM (via EDuke 2.1)

Nam.raze
FILE = /nam/NAM.GRP
CON  = NAM.CON

Files from game folder /NAM.

GAME.CON must be renamed to NAM.CON (FIXME is this really a requirement? We're already telling which game file it needs to load in Nam.raze.)

/userdata/roms/raze/
               ├─ nam/
               |  ├─ NAM.CON (Renamed from GAME.CON)
               |  ├─ NAM.GRP
               |  └─ NAM.RTS
               └─ Nam.raze

NAPALM (via EDuke 2.1) (Walmart version of NAM with different .GRP files)

Napalm.raze
FILE = /napalm/NAPALM.GRP
CON  = NAPALM.CON

Files from game folder /NAPALM

/userdata/roms/raze/napalm/
               |    ├── NAPALM.CON (Renamed from GAME.CON)
               |    ├── NAPALM.GRP
               |    └── NAPALM.RTS
               └── Napalm.raze

Redneck Rampage (via Rednukem)

Redneck Rampage.raze
FILE = /redneck/REDNECK.GRP

Files from game folder /Redneck Rampage

/userdata/roms/raze/redneck/
               |    └── REDNECK.GRP
               └── Redneck Rampage.raze
/userdata/roms/raze/redneck/music/
                            └── redneck02.ogg to redneck10.ogg (or track02.ogg to track10.ogg) (optional)

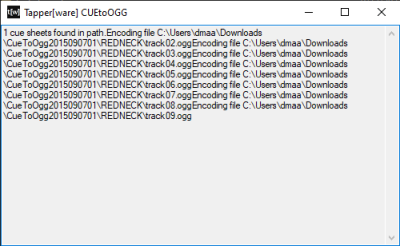

Note: The GOG distribution of the Redneck Rampage Collection does not feature the soundtrack as a loose collection of OGG files. Instead, an Disc Image is provided in the form of a BIN+CUE pair, with the BIN file named REDNECK.gog (or RRRAGAIN.gog) and the CUE file named REDNECK.inst (or RRRAGAIN.inst). The Steam distribution of Redneck Rampage does not feature the CD soundtrack at all, in any form. It is possible to convert the BIN/CUE to .ogg again with https://github.com/hansschmucker/CueToOgg Just copy the .gog and .inst to the CueToOgg root folder and execute CueToOgg.exe, wait until the extract process finish. * Use the same files for Redneck Rampage Rides Again

Redneck Rampage: Suckin' Grits on Route 66 (expansion)

Redneck Rampage - Suckin' Grits on Route 66.raze
FILE  = /redneck/REDNECK.GRP
FILE+ = /redneck/route66.zip

Files from game folder /Redneck Rampage

/userdata/roms/raze/redneck/route66.zip
                    |       ├── ASYAMB.VOC
                    |       ├── BUBBA66.CON
                    |       ├── DEFS66.CON
                    |       ├── END66.ANM
                    |       ├── END66.VOC
                    |       ├── G_BITE.VOC
                    |       ├── G_SIT.VOC
                    |       ├── GAME66.CON (Rename to GAME.CON)
                    |       ├── GATOR66.CON
                    |       ├── NEON.VOC
                    |       ├── PIG66.CON
                    |       ├── route66/ (all .MAP files) (Keep the ROUTE66 folder into the zip file)
                    |       |   ├── ALIEN.MAP
                    |       |   ├── BIGFOOT.MAP
                    |       |   ├── BREWERY.MAP
                    |       |   ├── CAMPY.MAP
                    |       |   ├── CARNIVAL.MAP
                    |       |   ├── COFFIN.MAP
                    |       |   ├── FLEA.MAP
                    |       |   ├── GAS.MAP
                    |       |   ├── HOOVRDAM.MAP
                    |       |   ├── MINIGOLF.MAP
                    |       |   ├── RANCH.MAP
                    |       |   ├── SLAUGHTR.MAP
                    |       |   ├── START.MAP
                    |       |   └── TRUCKSTP.MAP
                    |       ├── TILESA66.ART (Rename it to TILESA24.ART)
                    |       ├── TILEBA66.ART (Rename it to TILESB25.ART)
                    |       ├── TURD66.ANM
                    |       ├── TURD66.VOC
                    |       └── USER66.CON
                    └── Redneck Rampage - Suckin' Grits on Route 66.raze
/userdata/roms/raze/redneck/music/
                            └── redneck02.ogg to redneck10.ogg (or track02.ogg to track10.ogg) (optional)

Redneck Rampage Rides Again

Redneck Rampage Rides Again.raze
FILE = /redneckrides/RIDES.GRP

Files from game folder /Redneck Rampage/AGAIN

/userdata/roms/raze/redneckrides/
               |    ├── RIDES.GRP (Rename it from REDNECK.GRP to RIDES.GRP, this is not the same file as REDNECK/REDNECK.GPR but REDNECK/AGAIN/REDNECK.GPR)
               |    └── REDINT.MVE
               └── Redneck Rampage Rides Again.raze
/userdata/roms/raze/redneckrides/music/
                                 └── redneckrides02.ogg to redneckrides10.ogg (or track02.ogg to track10.ogg) (optional)

Redneck Rampage Cuss Pak (expansion)

Cuss Pack.raze
FILE  = /redneck/REDNECK.GRP
FILE+ = /redneck/cusspack.zip

Files from game folder /Redneck Rampage Cuss Pack

/userdata/roms/raze/redneck/
               |    ├── REDNECK.GRP
               |    └── cusspack.zip
               |    └── All files from cusspack
               |        └── *.CON, *.RTS, *.VOC
               └── Cuss Pak.raze
/userdata/roms/raze/redneck/music/
                            └── redneckrides02.ogg to redneckrides10.ogg (or track02.ogg to track10.ogg) (optional)

Shadow Warrior (via SWP & VoidSW)

Shadow Warrior.raze
FILE  = /shadow/SW.GRP

Files from game folder /Shadow Warrior

/userdata/roms/raze/shadow/
               |    └── SW.GRP
               └── Shadow Warrior.raze
/userdata/roms/raze/shadow/music/
                           └── shadow.ogg to shadow14.ogg (or track02.ogg to track14.ogg) (optional)

Note: Shadow Warrior Classic Redux comes with the base game and both expansion packs Wanton Destruction and Twin Dragon, while the free Shadow Warrior Classic Complete version does not. VoidSW, the EDuke32-based sourceport, looks for the two GRP files from these two expansion packs from Classic Redux and expects them to be present if you expect to play them.

Shadow Warrior Plus

Shadow Warrior.raze
FILE  = /shadow/SW.GRP
FILE+ = /shadow/SWP.GRP

Files from game folder /Shadow Warrior

/userdata/roms/raze/shadow/
               |    ├── SW.GRP
               |    └── SWP.GRP
               └── Shadow Warrior.raze
/userdata/roms/raze/shadow/music/
                           └── shadow.ogg to shadow14.ogg (or track02.ogg to track14.ogg) (optional)

Shadow Warrior: Twin Dragon (expansion)

Twin Dragon.raze
FILE  = /shadow/SW.GRP
FILE+ = /shadow/TD.GRP

Files from game folder /Shadow Warrior Classic/ and /Shadow Warrior Classic/gameroot/addons

/userdata/roms/raze/shadow/
               |    ├── SW.GRP
               |    └── TD.GRP or TWINDRAG.GRP
               └── Twin Dragon.raze
/userdata/roms/raze/shadow/music/
                           └── shadow.ogg to shadow14.ogg (or track02.ogg to track14.ogg) (optional)

Shadow Warrior: Wanton Destruction (expansion)

Wanton Destruction.raze
FILE  = /shadow/SW.GRP
FILE+ = /shadow/WD.GRP

Files from game folder /Shadow Warrior Classic/ and /Shadow Warrior Classic/gameroot/addons

/userdata/roms/raze/shadow/
               |    ├── SW.GRP
               |    └── WT.GRP
               └── Wanton Destruction.raze
/userdata/roms/raze/shadow/music/
                           └── shadow02.ogg to shadow14.ogg (or track02.ogg to track14.ogg) (optional)

World War II GI (via EDuke 2.1)

World War II GI.raze
FILE = /ww2gi/WW2GI.GRP

Files from game folder /WWII GI

/userdata/roms/raze/ww2gi/
               |    ├── WW2GI.GRP
               |    └── WW2GI.CON
               └── World War II GI.raze

World War II GI: Platoon Leader (expansion)

Platoon Leader.raze
FILE  = /ww2gi/WW2GI.GRP
FILE+ = /ww2gi/PLATOONL.DAT
CON   = PLATOONL.DEF

Files from game folder /WWII GI and /platoonleader

/userdata/roms/raze/ww2gi/
               |    ├── WW2GI.GRP
               |    ├── PLATOONL.DAT
               |    └── PLATOONL.DEF
               └── Platoon Leader.raze

Raze compatible games: https://zdoom.org/wiki/Raze#Supported_games

Saves

Save location saves/raze/<game>.<save game extension>

Emulators

Raze

Standardized features available to all cores of this emulator: raze.videomode, raze.padtokeyboard, raze.videomode, raze.bezel, raze.bezel_stretch, raze.hud, raze.hud_corner, raze.bezel.tattoo, raze.bezel.tattoo_corner, raze.bezel.tattoo_file, raze.bezel.resize_tattoo

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
SKIP INTRO VIDEOS raze.nologo
⇒ Skip 1, Show (Default) 0.

Controls

Here are the default Raze's controls shown on a Batocera Retropad:

Troubleshooting

Game does not launch:

  • Check logs files es_launch_stderr.log and raze.log. at userdata/system/logs
  • Make sure all files needed are available at roms/raze.

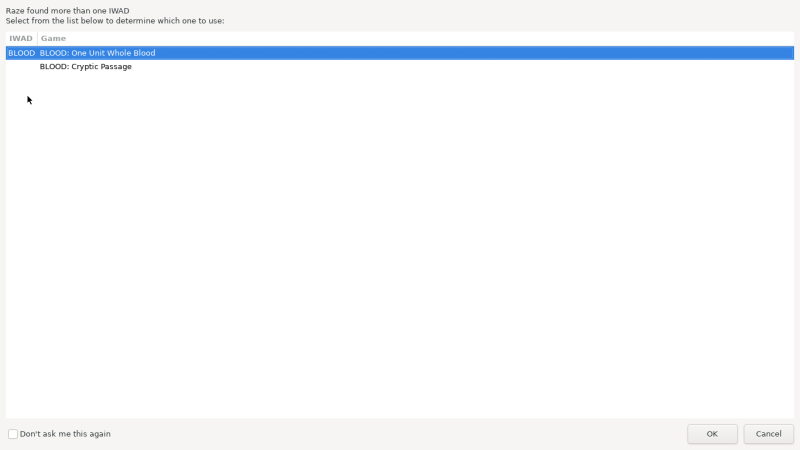

  • Make sure the *.raze launch file is setup correctly:
    • Check the case sensitivity.
    • Check the use of FILE, FILE+ and CON:
      • FILE and FILE+ must use /roms/raze/<gamefolder>/<main file or add-on>
      • CON must use the relative path to the main file, so just <con file> (normally store in the same folder as the main file)
    • .raze files must not have any empty lines.
  • As a last resort, reset Raze's files: delete all files and folders from /userdata/system/configs/raze/* and /userdata/saves/raze/* and start again.

Engine ask for which file initialize

- Make sure that add-ons that must be zipped (Blood and Redneck Rampage ones), and not unziped into the game folder, otherwise raze can't decide which file choose.

Script error "raze.pk3:menudef.txt" line 815: Float expected, got 0.5

This error is reproducible due to Raze engine can't decide which file select to launch the game (main or add-on or duplicated one files), even if the user indicates what is the correct one it will fail.

Be restrictive to store raze files into /userdata/roms/raze, you could have saved files in other folder across userdata folder and subfolders by accident.

Check it out the file /saves/raze/grpcrccache.txt to verify if the Raze engine found a file out of userdata/roms/raze, so delete the game files and also the wrong line.

A correctly grpcrccache.txt file content:

"/userdata/roms/raze/duke/DUKE3D.GRP" 44356548 0 4248686577
"/userdata/roms/raze/exhumed/STUFF.DAT" 27108170 0 3820057329
"/userdata/roms/raze/pwrslave/STUFF.DAT" 27020745 0 809287049
"/userdata/roms/raze/redneck/REDNECK.GRP" 141174222 0 433699961
"/userdata/roms/raze/redneckrides/RIDES.GRP" 141174222 0 433699961
"/userdata/roms/raze/shadow/SW.GRP" 47536148 0 1967468959
"/userdata/roms/raze/ww2gi/WW2GI.GRP" 77939508 0 2424013503
"/userdata/roms/raze/blood/BLOOD.RFF" 9570681 0 2835208836
"/userdata/roms/raze/nam/NAM.GRP" 43448927 0 1975644283

Incorrectly grpcrccache.txt file content:

"/userdata/roms/DUKE3D.GRP" 44356548 0 4248686577
"/userdata/roms/raze/exhumed/STUFF.DAT" 27108170 0 3820057329
"/userdata/roms/raze/pwrslave/STUFF.DAT" 27020745 0 809287049
"/userdata/roms/REDNECK.GRP" 141174222 0 433699961
"/userdata/roms/raze/redneckrides/RIDES.GRP" 141174222 0 433699961
"/userdata/SW.GRP" 47536148 0 1967468959
"/userdata/roms/raze/ww2gi/WW2GI.GRP" 77939508 0 2424013503
"/userdata/roms/raze/blood/BLOOD.RFF" 9570681 0 2835208836
"/userdata/NAM.GRP" 43448927 0 1975644283

In this example, you should move the files to the correct place, and remove the wrong lines.

https://github.com/batocera-linux/batocera.linux/issues/7123

Further troubleshooting

For further troubleshooting, refer to the generic support pages.

  • systems/raze.txt
  • Last modified: 14 months ago
  • by maximumentropy
