Sega Saturn

The Sega Saturn is fifth generation home console developed by Sega. It was released in 1994, retailing for $399.99 USD ($740 in 2021).

The Saturn's hardware borrows many components from the Sega Titan Video arcade system. But instead of reading from a cartridge, it uses CD-ROMs.

The Saturn is considered one of the more complicated consoles to both program for by developers and to properly emulate. In fact, it's better to consider this a sixth generation console for performance reasons. In an ironic twist of events, the Saturn's successor is much easier to emulate than the Saturn itself.

This system scrapes metadata for the “saturn” group and loads the saturn set from the currently selected theme, if available.

Quick reference

BIOS

MD5 checksum Share file path Description
85ec9ca47d8f6807718151cbcca8b964 bios/sega_101.bin
3240872c70984b6cbfda1586cab68dbe bios/mpr-17933.bin
255113ba943c92a54facd25a10fd780c bios/mpr-18811-mx.ic1
1cd19988d1d72a3e7caa0b73234c96b4 bios/mpr-19367-mx.ic1
af5828fdff51384f99b3c4926be27762 bios/saturn_bios.bin

ROMs

Place your Sega Saturn ROMs in /userdata/roms/saturn.

Multi-disc games

libretro: yabasanshiro does not support swapping the disc using RetroArch's disc control menu, so the save file must be renamed to disc 2's game name and the disc's ROM must be loaded manually in Batocera in order to “swap discs”. There is no way to use playlists to achieve this functionality.

For example, if you have a game like Panzer Dragoon (disc 1).chd and you've reached the end of the disc and need to swap, go into the saves/saturn/ folder and rename Panzer Dragoon (disc 1).sav to Panzer Dragoon (disc 2).sav. Then, load the Panzer Dragoon (disc 2).chd game in Batocera and continue from where you left off.

Emulators

RetroArch

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: saturn.videomode, saturn.ratio, saturn.smooth, saturn.shaders, saturn.pixel_perfect, saturn.decoration, saturn.game_translation

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS API saturn.gfxbackend Choose which graphics API library to use. Vulkan is better, when supported.
⇒ OpenGL opengl, Vulkan vulkan.
AUDIO LATENCY saturn.audio_latency In milliseconds. Can reduce crackling/cutting out.
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
THREADED VIDEO saturn.video_threaded Improves performance at the cost of latency and more video stuttering.
⇒ On true, Off false.

libretro: beetle-saturn

The libretro port of the original Mednafen Saturn core. A highly accurate but demanding emulator.

beetle-saturn does not support opening .zip files.

libretro: beetle-saturn configuration

libretro: kronos

libretro: kronos configuration

libretro: yabasanshiro

Yaba Sanshiro is an open-source Sega Saturn emulator. Initially forked from Yabause.

This is the libretro port of it.

libretro: yabasanshiro configuration
ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all systems this core supports
RENDERING RESOLUTION global.resolution_mode Enhancement. Increase the rendering resolution. Makes 3D objects clearer. Do note that some games would run at their own unique but similar resolutions. Therefore, the listed resolutions may not be 100% accurate.
⇒ original original, 2x 2x, 4x 4x, 720p 720p, 1080p 1080p, 4k 4k.
MULTITAP global.multitap_yabasanshiro Allows up to 7 or 12 controllers in supported games.
⇒ Off disabled, Port1 port1, Port2 port2, Port1+2 port12.

Controls

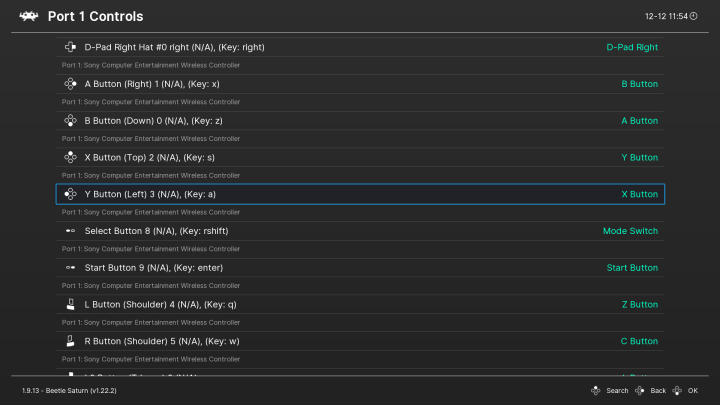

The default control scheme is broken in v38 and before. Go to Quick Menu → Controls → Port 1 Controls:

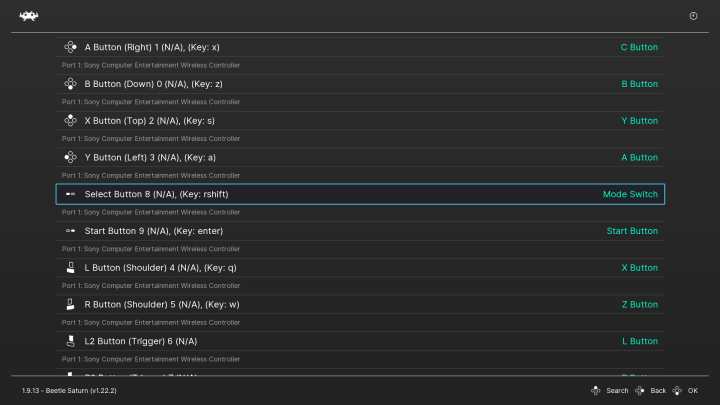

and change it to this:

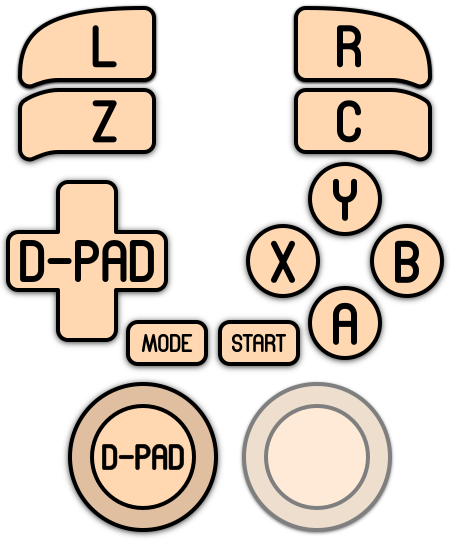

Here are the default Sega Saturn's controls shown on a Batocera Retropad since v39:

Troubleshooting

Further troubleshooting

For further troubleshooting, refer to the generic support pages.
