Sharp X1

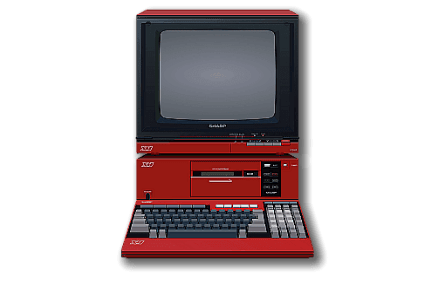

The Sharp X1 is a computer developed by Sharp. It was released in 1982.
This system scrapes metadata for the “x1” group(s) and loads the x1 set from the currently selected theme, if available.
Quick reference
- Emulator: RetroArch
- Core: libretro: x1
- Folder:
/userdata/roms/x1 - Accepted ROM formats:
.dx1,.zip,.2d,.2hd,.tfd,.d88,.88d,.hdm,.xdf,.dup,.cmd,.7z
BIOS
| MD5 checksum | Share file path | Description |
|---|---|---|
eeeea1cd29c6e0e8b094790ae969bfa7 | bios/xmil/IPLROM.X1 | |
56c28adcf1f3a2f87cf3d57c378013f5 | bios/xmil/iplrom.x1t |
ROMs
Place your Sharp X1 ROMs in /userdata/roms/x1.
Emulators
RetroArch
RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.
RetroArch configuration
RetroArch offers a Quick Menu accessed by pressing [HOTKEY] +
which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.
Standardized features available to all libretro cores: x1.videomode, x1.videomode, x1.ratio, x1.shaderset, x1.smooth, x1.integerscale, x1.bezel, x1.bezel_stretch, x1.hud, x1.bezel.tattoo, x1.bezel.tattoo_corner, x1.bezel.tattoo_file, x1.bezel.resize_tattoo, x1.ai_service_enabled, x1.ai_target_lang, x1.ai_service_url, x1.ai_service_pause, x1.runahead, x1.secondinstance, x1.video_frame_delay_auto, x1.vrr_runloop_enable, x1.video_threaded
ES setting name batocera.conf_key | Description ⇒ ES option key_value |
|---|---|
| Settings that apply to all cores of this emulator | |
GRAPHICS API x1.gfxbackend | Choose which graphics API library to use. Vulkan may not work for every core. ⇒ OpenGL gl, GLCore glcore, Vulkan vulkan. |
AUDIO LATENCY x1.audio_latency | In milliseconds. Can reduce crackling/cutting out. ⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8. |
ALLOW ROTATION x1.video_allow_rotate | Allow cores to set rotation. ⇒ On true, Off false. |
CONTROLLER TO LIGHT GUN x1.lightgun_map | Map controller inputs to light gun inputs. ⇒ On true, Off false. |
libretro: x1
libretro: x1 configuration
Standardized features for this core: x1.rewind, x1.autosave, x1.padtokeyboard
Controls
Here are the default Sharp X1's controls shown on a Batocera RetroPad:
Troubleshooting
Further troubleshooting
For further troubleshooting, refer to the generic support pages.
