Sharp X68000

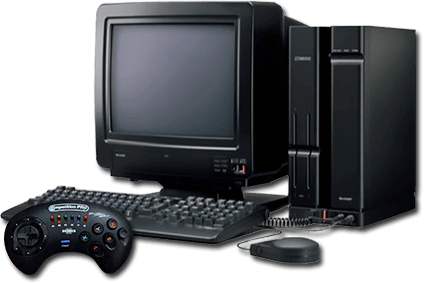

The Sharp X68000 is a computer developed by Sharp. It was released in 1987.

This system scrapes metadata for the “x68000” group(s) and loads the x68000 set from the currently selected theme, if available.

Quick reference

  • Emulator: RetroArch
  • Core: libretro: px68k
  • Folder: /userdata/roms/x68000
  • Accepted ROM formats: .dim, .img, .d88, .88d, .hdm, .dup, .2hd, .xdf, .hdf, .cmd, .m3u, .zip, .7z

BIOS

MD5 checksum Share file path Description
7fd4caabac1d9169e289f0f7bbf71d8e bios/keropi/iplrom.dat
cb0a5cfcf7247a7eab74bb2716260269 bios/keropi/cgrom.dat

ROMs

Place your Sharp X68000 ROMs in /userdata/roms/x68000.

Emulators

RetroArch

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: x68000.videomode, x68000.videomode, x68000.ratio, x68000.shaderset, x68000.smooth, x68000.integerscale, x68000.bezel, x68000.bezel_stretch, x68000.hud, x68000.bezel.tattoo, x68000.bezel.tattoo_corner, x68000.bezel.tattoo_file, x68000.bezel.resize_tattoo, x68000.ai_service_enabled, x68000.ai_target_lang, x68000.ai_service_url, x68000.ai_service_pause, x68000.runahead, x68000.secondinstance, x68000.video_frame_delay_auto, x68000.vrr_runloop_enable, x68000.video_threaded

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS API x68000.gfxbackend Choose which graphics API library to use. Vulkan may not work for every core.
⇒ OpenGL gl, GLCore glcore, Vulkan vulkan.
AUDIO LATENCY x68000.audio_latency In milliseconds. Can reduce crackling/cutting out.
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
ALLOW ROTATION x68000.video_allow_rotate Allow cores to set rotation.
⇒ On true, Off false.
CONTROLLER TO LIGHT GUN x68000.lightgun_map Map controller inputs to light gun inputs.
⇒ On true, Off false.

libretro: px68k

libretro: px68k configuration

Standardized features for this core: x68000.padtokeyboard

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all systems this core supports
CPU CLOCK global.px68k_cpuspeed Slow down or speed up games as appropriate.
⇒ 10Mhz 10Mhz, 16Mhz 16Mhz, 25Mhz 25Mhz, 33Mhz (Overclock) 33Mhz (OC), 66Mhz (Overclock) 66Mhz (OC), 100Mhz (Overclock) 100Mhz (OC), 150Mhz (Overclock) 150Mhz (OC), 200Mhz (Overclock) 200Mhz (OC).
EMULATED RAM SIZE global.px68k_ramsize
⇒ 1MB 1MB, 2MB 2MB, 3MB 3MB, 4MB 4MB, 5MB 5MB, 6MB 6MB, 7MB 7MB, 8MB 8MB, 9MB 9MB, 10MB 10MB, 11MB 11MB, 12MB 12MB.
FRAMESKIP global.px68k_frameskip Skip frames to improve performance, at the cost of choppy motion.
⇒ Full Frame Full Frame, 1/2 Frame 1/2 Frame, 1/3 Frame 1/3 Frame, 1/4 Frame 1/4 Frame, 1/5 Frame 1/5 Frame, 1/6 Frame 1/6 Frame, 1/8 Frame1 1/8 Frame1, 16 Frame 16 Frame, 1/32 Frame 1/32 Frame, 1/60 Frame 1/60 Frame, Auto Frame Skip Auto Frame Skip.
JOYPAD TYPE global.px68k_joytype Applies to both players.
⇒ Default (2 Buttons) Default (2 Buttons), Megadrive (8 Buttons) CPSF-MD (8 Buttons), Super Famicom (8 Buttons) CPSF-SFC (8 Buttons).

Controls

Here are the default Sharp X68000's controls shown on a Batocera RetroPad:

Troubleshooting

Further troubleshooting

For further troubleshooting, refer to the generic support pages.
