Nintendo Pokémon Mini

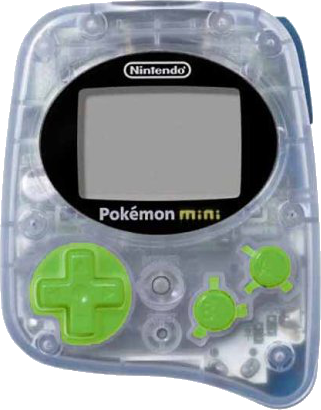

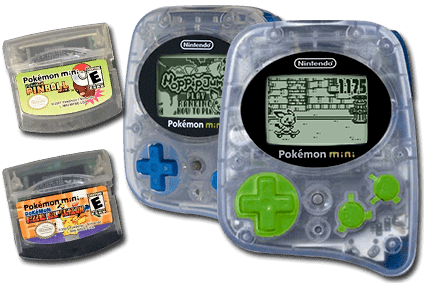

The Pokémon Mini is a handheld game console designed and manufactured by Nintendo and themed around the Pokémon media franchise. Released during the sixth generation of consoles, it is the smallest game system with interchangeable cartridges ever produced by Nintendo, weighing just under two and a half ounces (70 grams) and featuring a monochrome LCD of impressive 96×64 pixels. It was first released in North America on November 16, 2001. The systems were released in three colors: Wooper Blue, Chikorita Green, and Smoochum Purple. Over the course of its short life, ten games were released for the system, five of which were Japan-exclusive. Only four games were ever released in North America.

Features of the Pokémon mini include an internal real-time clock, an infrared port used to facilitate multiplayer gaming, a reed switch to detect shakes and a motor used to implement force feedback. It runs on a Seiko S1C88 8-bit CPU clocked at 4 MHz and 4 kB of memory, powered by a single AAA battery, with 60 hours of autonomy.

At this point in time, it's much more a collectable piece of Pokémon merchandise than it is a video game console.

This system scrapes metadata for the “pokemini” group and loads the pokemini set from the currently selected theme, if available.

Quick reference

BIOS

No Pokemon-Mini emulator in Batocera needs a BIOS file to run.

ROMs

Place your Pokemon-Mini ROMs in /userdata/roms/pokemini.

Emulators

RetroArch

RetroArch (formerly SSNES), is a ubiquitous frontend that can run multiple “cores”, which are essentially the emulators themselves. The most common cores use the libretro API, so that's why cores run in RetroArch in Batocera are referred to as “libretro: (core name)”. RetroArch aims to unify the feature set of all libretro cores and offer a universal, familiar interface independent of platform.

RetroArch configuration

RetroArch offers a Quick Menu accessed by pressing [HOTKEY] + South button (B SNES) which can be used to alter various things like RetroArch and core options, and controller mapping. Most RetroArch related settings can be altered from Batocera's EmulationStation.

Standardized features available to all libretro cores: pokemini.videomode, pokemini.ratio, pokemini.smooth, pokemini.shaders, pokemini.pixel_perfect, pokemini.decoration, pokemini.game_translation

ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all cores of this emulator
GRAPHICS BACKEND pokemini.gfxbackend Choose your graphics rendering
⇒ OpenGL opengl, Vulkan vulkan.
AUDIO LATENCY pokemini.audio_latency Audio latency in milliseconds, turn it up if you hear crackles
⇒ 256 256, 192 192, 128 128, 64 64, 32 32, 16 16, 8 8.
THREADED VIDEO pokemini.video_threaded Improves performance at the cost of latency and more video stuttering. Use only if full speed cannot be obtained otherwise.
⇒ On true, Off false.

libretro: pokemini

Batocera uses the standalone port PokeMini PokeMini based on the Portable Pokémon Mini Emulator.

libretro: pokemini configuration
ES setting name batocera.conf_key Description ⇒ ES option key_value
Settings that apply to all systems this core supports
LCD FILTER global.pokemini_lcdfilter Produces a clean LCD effect
⇒ Off none, On dotmatrix.
LCD GHOSTING EFFECTS global.pokemini_lcdmode Simulate the LCD ghosting effect
⇒ Off 3shades, On analog.

Controls

Here are the default Pokemon-Mini's controls shown on a Batocera Retropad:

The default button mapping to the Pokémon Mini is 1-to-1 to the Nintendo Game Boy.

Troubleshooting

Further troubleshooting

For further troubleshooting, refer to the generic support pages.
